Upgrading from v9.2.0.1

The procedure to upgrade the ESA from v9.2.0.1 to v10.0.x.

Before you begin

  • Ensure that you upgrade the ESA prior to upgrading the protectors.

  • Ensure that the ESA nodes in the Audit Store cluster are upgraded one at a time.

  • If only two ESAs are available in the Audit Store cluster, then remove the secondary ESA from the cluster. Upgrade the primary ESA, then upgrade the secondary ESA, and add the secondary ESA back to the Audit Store cluster. However, a minimum of three ESAs are recommended for the Audit Store cluster.

Uploading and Installing the ESA patch from CLI Manager

Perform the following steps to upload and install the patch from the CLI Manager:

  1. Log in to the ESA CLI Manager with administrator credentials.

  2. Navigate to Administration > OS Console to upload the patch.
    Enter the root password and click OK.

  3. Upload the patch to the /products/uploads directory using the FTP or SCP command.

  4. After the patch is uploaded, navigate to Administration > Patch Management to install the patch.
    Enter the root password and click OK.

  5. Select Install a Patch.

  6. Select the ESA_PAP-ALL-64_x86-64_10.0.1.2443.pty patch file and select Install.

    • Ensure to download the latest patch from the My.Protegrity portal.

    • For more information about the latest build number and the patch details, refer to the Release Notes of the respective patch.

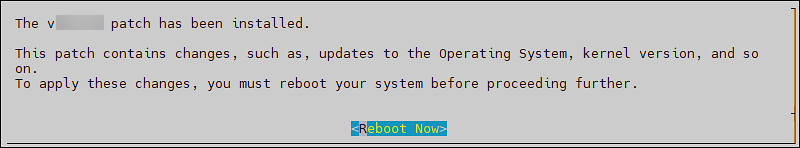

  7. After the patch is installed, select Reboot Now.

    Reboot Now

    This screen has a timeout of 60 seconds. If Reboot Now is not selected manually, then the system automatically reboots after 60 seconds.

  8. After the reboot is initiated, the message Patch has been installed successfully !! appears. Select Exit.

The patch is installed and the ESA is upgraded to v10.0.x.

Verifying the ESA Patch Installation

Perform the following steps to verify the patch installation:

  1. Log in to the ESA CLI Manager.
  2. Navigate to Administration > Patch Management.
  3. Enter the root password.
  4. Select List installed patches. The ESA_10.0.x patch name appears.
  5. Log in to the ESA Web UI.
  6. Navigate to the System > Information page.
    The ESA is upgraded to v10.0.x. The upgraded patch on the ESA is displayed in the Installed Patches section.
