Configuring Azure AD Settings

Before configuring Azure AD Settings on the ESA, you must have the following values that are required to connect the ESA with the Azure AD:

• Tenant ID
• Client ID
• Client Secret or Thumbprint

For more information about the Tenant ID, Client ID, Authentication Type, and Client Secret/Thumbprint, search for the text Register an app with Azure Active Directory on Microsoft’s Technical Documentation site at: https://learn.microsoft.com/en-us/docs/

The following are the list of the API permissions that must be granted.

• Group.Read.All
• GroupMember.Read.All
• User.Read
• User.Read.All

To assign API permissions in Microsoft Azure, contact your Microsoft Azure administrator.

For more information about configuring the application permissions in the Azure AD, please refer https://learn.microsoft.com/en-us/graph/auth-v2-service?tabs=http.

Ensure that the Allow public client flows setting is Enabled. To enable the Allow public client flows setting, navigate to Authentication > Advanced settings, click the toggle button, and select Yes.

To configure Azure AD settings:

1. On the ESA CLI Manager, navigate to Administration > Azure AD Configuration.

2. Enter the root password.

   The Azure AD Configuration dialog box appears.

3. Select Configure Azure AD Settings.

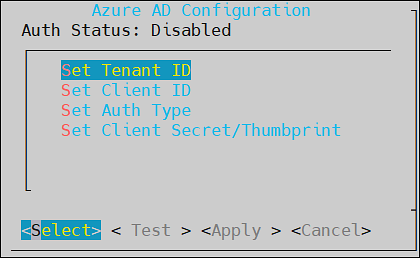

   The Azure AD Configuration screen appears.



4. Enter the information for the following fields.

   Table: Azure AD Settings

   Setting	Description
   Set Tenant ID	Unique identifier of the Azure AD instance
   Set Client ID	Unique identifier of an application created in Azure AD
   Set Auth Type	Select one of the Auth Type: SECRET indicates a password-based authentication. In this authentication type, the secrets are symmetric keys, which the client and the server must know. CERT indicates a certificate-based authentication. In this authentication type, the certificates are the private keys, which the client uses. The server validates this certificate using the public key.
   Set Client Secret/Thumbprint	The client secret/thumbprint is the password of the Azure AD application. If the Auth Type selected is SECRET, then enter Client Secret. If the Auth type selected is CERT, then enter Client Thumbprint.

   For more information about the Tenant ID, Client ID, Authentication Type, and Client Secret/Thumbprint, search for the text Register an app with Azure Active Directory on Microsoft’s Technical Documentation site at: https://learn.microsoft.com/en-us/docs/

5. Click Test to check the configuration/settings.

   The message Successfully Done appears.

6. Click OK.

7. Click Apply to apply and save the changes.

   The message Configuration saved successfully appears.

8. Click OK.
