1 - Cloud API

This section describes the high-level architecture of Protegrity Cloud API, installation procedures, and performance guidance. This section focuses on Protegrity specific aspects and should be consumed in conjunction with the corresponding GCP documentation.

This guide may also be used with the Protegrity Enterprise Security Administrator Guide, which explains the mechanism for managing the data security policy.

1.1 - Overview

Solution Overview

Cloud API Protector on GCP is a cloud-native, serverless product for fine-grained data protection. This enables the invocation of Protegrity data protection cryptographic methods in cloud-native serverless technology. The benefits of serverless include rapid auto-scaling, performance, low administrative overhead, and reduced infrastructure costs compared to a server-based solution.

This product provides a data protection API end-point for clients. The product is designed to scale elastically and yield reliable query performance under extremely high concurrent loads. During idle use, the serverless product will scale completely down, providing significant savings in Cloud compute fees.

Protegrity utilizes a data security policy maintained by an Enterprise Security Administrator (ESA), similar to other Protegrity products. Using a simple REST API interface, authorized users can perform both de-identification (protect) and re-identification (unprotect) operations on data. A user’s individual capabilities are subject to privileges and policies defined by the Enterprise Security Administrator.

Analytics on Protected Data

Protegrity’s format and length preserving tokenization scheme make it possible to perform analytics directly on protected data. Tokens are join-preserving so protected data can be joined across datasets. Often statistical analytics and machine learning training can be performed without the need to re-identify protected data. However, a user or service account with authorized security policy privileges may re-identify subsets of data using the Cloud API Protector on GCP service.

Features

Cloud API Protector on GCP incorporates Protegrity’s patent-pending vaultless tokenization capabilities into cloud-native serverless technology. Combined with an ESA security policy, the protector provides the following features:

• Role-based access control (RBAC) to protect and unprotect (re-identify) data depending on the user privileges.
• Policy enforcement features of other Protegrity application protectors.

For more information about the available protection options, such as, data types, Tokenization or Encryption types, or length preserving and non-preserving tokens, refer to Protection Methods Reference.

1.2 - Architecture

Deployment Architecture

The Protegrity product should be deployed in the customer’s Cloud account. The product incorporates Protegrity’s vaultless tokenization engine within Google Cloud Functions. The encrypted data security policy from an ESA is deployed periodically as a static resource together with Cloud Function binaries. The policy is decrypted in memory at runtime within the Cloud Function. This architecture allows Protegrity to be highly available and scale very quickly without direct dependency on any other Protegrity services.

The product exposes a remote data protection service. Each network REST request includes a micro-batch of data to process and parameters such as operation and data element. The product applies the ESA security policy including user authorization and returns a corresponding response. Security operations on sensitive data performed by protector can be audited. The product can be configured to send audit logs to ESA via optional component called Log Forwarder.

The security policy is synchronized through another serverless component called the Protegrity Policy Agent. The agent operates on a configurable schedule, fetches the policy from the ESA, performs envelope encryption using Google Key Management Service, and deploys new version of Cloud Function with updated policy. This solution can be configured to automatically provision the static policy or the final step can be performed on-demand by an administrator. There is no downtime for users during this process. Instances provisioned with the function’s previous policy version may continue running (and processing traffic) for several minutes after a deployment has finished.

The following diagram illustrates the high-level architecture.

The following diagram illustrates a reference architecture for synchronizing the security policy from the ESA to the product.

The Protegrity Policy Agent requires network access from GCP to your ESA. Most organizations install the ESA on-premise. Thus, it is recommended to install the Policy Agent in a private subnet with a Cloud VPC using a NAT Gateway to enable this communication through a corporate firewall.

The ESA is a soft appliance that must be installed on a separate server. It is used to create and manage security policies.

For more information about installing the ESA, and creating and managing policies, refer to the Policy Management Guide.

Audit Log Forwarding Architecture

Audit logs are by default sent to Cloud Logging. The Protegrity Product can also be configured to send audit logs to ESA. Such configuration requires deploying Log Forwarder component which is available as part of Protegrity Product deployment bundle. The diagram below shows additional resources deployed with Log Forwarder component.

The log forwarder component includes Pub/Sub service topic and the audit log forwarder function. Pub/Sub service is used to asynchronously send audit records to forwarder function, where similar audit logs are aggregated before sending to ESA. Aggregation rules are described in the Protegrity Log Forwarding guide. When the protector function is configured to send audit logs to log forwarder, audit logs are aggregated on the protector function before sending to Pub/Sub topic. Protector function exposes configuration to control the time it spends aggregating audit logs which is described in the protector function installation section.

The security of audit logs is ensured by using HTTPS connection on each link of the communication between protector function and ESA. Integrity and authenticity of audit logs is additionally checked on log forwarder which verifies individual logs signature. The signature verification is done upon arrival from Pub/Sub topic before applying aggregation. If signature cannot be verified, the log is forwarded as is to ESA where additional signature verification can be configured. Log forwarder function uses basic auth and optional certificate verification to authenticate calls to ESA. Basic auth credentials are stored securely in Secret Manager Service.

To learn more about individual audit log entry structure and purpose of audit logs, refer to Audit Logging section in this document. Installation instruction can be found in the Audit Log Forwarder installation.

The audit log forwarding requires network access from the cloud to the ESA. Most organizations install the ESA on-premise. Therefore, it is recommended that the Log Forwarder Function is installed into a private subnet with a Cloud VPC using a NAT Gateway to enable this communication through a corporate firewall.

Access Control

The Cloud API utilizes access controls provided by the Google Cloud Functions service. The following mechanisms are available for controlling and restricting access to the Cloud API data protection endpoint:

• Google Cloud Identity and Access Management (IAM) access control.
• Google Cloud Network-based access control.
• OpenID Connect. OpenID is a simple identity layer on top of the OAuth 2.0 protocol. Authorization is performed in the Protegrity Cloud Function code.

For more information on Google Cloud Functions security concepts, refer to Securing Cloud Functions

• REST API Authentication and Authorization

• REST API Policy Authorization

REST API Authentication and Authorization

The Rest API supports built-in authentication and authorization provided by Google Cloud Functions. More information is available in the following Google Cloud Functions documentation.

https://cloud.google.com/functions/docs/securing/authenticating

REST API Policy Authorization

Once the request is authenticated and authorized by the Cloud Function, the Protegrity Cloud API performs the requested security operation based on the policy data element from the payload and the authenticated user.

1.3 - Installation

1.3.1 - Prerequisites

Google Cloud Services

The following table describes the Google Cloud services that may a part of your Protegrity installation.

ESA Version Requirements

The Protector and Log Forwarder functions require a security policy from a compatible ESA version.

The table below shows compatibility between different Protector and ESA versions.

Prerequisites

Required Skills and Abilities

1.3.2 - Pre-Configuration

Google Cloud Project

Identify or create a new Google Cloud Project where the Protegrity solution will be installed. It is recommended to create a new project. This provides greater security controls and avoids conflicts with other applications that might impact regional account limits. An individual with the Owner role will be required for some of the subsequent installations.

Google Project ID: ___________________

Google Project Number: ___________________

Google Cloud Region: ___________________

Key Management Service

The Google Cloud Key Management Service (KMS) provides Protegrity Serverless solution the ability to encrypt and decrypt the Protegrity Security Policy.

To create KMS Key Ring and Asymmetric Encryption Master Key:

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Navigate to Security > Key Management.

3. Select Create key ring.

4. Specify key ring name. For example, protegrity-policy-keyring.

5. select Key ring location which corresponds to the region where Protegrity solution will be installed.

   Note

   A key’s location impacts the performance of protect service.

6. Select Create.

7. Select CREATE KEY to create encryption key.

8. Specify key name. For example, protegrity-policy-key.

9. under Purpose selection, select Asymmetric Decrypt .

10. Select Key Algorithm. For example, 3072-bit RSA with OAEP Padding and SHA256 digest.

11. Select Create.

12. Once the key is created, a screen opens on the key. If the screen does not appear, click on the key name.

13. Then click on the elipses under Actions that is next to the key version.

14. Select Copy Resource Name and record the value below, e.g., projects/{project-id}/locations/region/keyRings/{key-ring}/cryptoKeys/{key-name}/cryptoKeyVersions/1

    Policy Encryption Key Version Resource Name: ___________________

Google Cloud Storage

Cloud Storage buckets are required for the Gen 2 Cloud Function sources, the Terraform backend, and the deployment of the Protegrity installation artifacts. It is recommended that you create 3 separate buckets to separate files used for different purposes. If you cannot create 3 separate buckets, you may reuse a bucket for multiple purposes.

Create the buckets:

1. Run the cloud command below to enable the Google Storage Transfer API.

   gcloud services enable storagetransfer.googleapis.com


2. Create the Gen 2 Cloud Function sources bucket. This bucket is not required if you will be deploying to Gen 1 Cloud Functions. The bucket name much match the example below. Replace the <gcp-project-number> and <region> placeholders.

   gcf-v2-sources-<gcp-project-number>-<region>


   Use the following gcloud command to obtain project number

   gcloud projects describe <gcp-project-id> --format='value(projectNumber)'


3. Create the deployment bucket or reuse an existing bucket. This bucket is used during the installation process to store the Protegrity installation artifacts.

   Deployment Bucket Name:___________________

4. Create the Terraform backend bucket or reuse an existing bucket. This bucket is used by Terraform to store information about your Cloud Protect installation, and will be used if you upgrade to a later version of Cloud Protect in the future.

   Terraform Backend Bucket Name:___________________

Cloud Functions Service Accounts

Cloud Functions use the service accounts created in this deployment. You can create Service accounts manually or use the Protegrity Terraform installation script to create one. Each service account requires specific permissions, which must be granted through IAM roles. Run the following steps to create service accounts and configure the required IAM access. If you use Terraform scripts, skip these steps.

Agent Function IAM Role

To create Agent Function IAM Role:

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Navigate to IAM & Admin > Roles, Select CREATE ROLE.

3. Specify role name and description.

4. Select ADD PERMISSIONS.

5. Select the following permissions:

   • cloudkms.cryptoKeyVersions.useToEncrypt
   • cloudkms.cryptoKeyVersions.viewPublicKey
   • secretmanager.versions.access
   • storage.objects.get
   • storage.objects.create
   • storage.objects.delete
   • storage.objects.list
   • storage.objects.update
   • storage.buckets.get
   • cloudfunctions.functions.get
   • cloudfunctions.functions.update
   • cloudfunctions.functions.sourceCodeGet
   • cloudfunctions.functions.sourceCodeSet
   • iam.serviceAccounts.actAs

6. Click Add and then Create.

Alternatively, you can run the following command from the Cloud Shell Terminal.

      gcloud iam roles create role-id \
      --project=project-id \
      --title=role-title \
      --description=role-description \
      --permissions=cloudkms.cryptoKeyVersions.useToEncrypt,\
      cloudkms.cryptoKeyVersions.viewPublicKey,\
      secretmanager.versions.access,\
      storage.objects.get,\
      storage.objects.create,\
      storage.objects.delete,\
      storage.objects.list,\
      storage.objects.update,\
      storage.buckets.get,\
      cloudfunctions.functions.get,\
      cloudfunctions.functions.update,\
      cloudfunctions.functions.sourceCodeGet,\
      cloudfunctions.functions.sourceCodeSet,\
      iam.serviceAccounts.actAs \
      --stage=GA


• role-id

  is the name of the role, such as ptyProtectRole.

• project-id

  is the name of the project, such as my-project-id.

• role-description

  is a short description of the role, such as “My custom role description”.

Sample output:

      Created role [role-id].
      description: role-description
      etag: *****************
      includedPermissions:
      - cloudfunctions.functions.get
      - cloudfunctions.functions.sourceCodeGet
      - cloudfunctions.functions.sourceCodeSet
      - cloudfunctions.functions.update
      - cloudkms.cryptoKeyVersions.useToEncrypt
      - cloudkms.cryptoKeyVersions.viewPublicKey
      - iam.serviceAccounts.actAs
      - secretmanager.versions.access
      - storage.buckets.get
      - storage.objects.create
      - storage.objects.delete
      - storage.objects.get
      - storage.objects.list
      - storage.objects.update
      name: projects/{project-id}/roles/{role-id}
      stage: GA
      title: role-title


Agent Service Account

To create Agent Service Account:

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Navigate to IAM & Admin > Service Accounts.

3. Select CREATE SERVICE ACCOUNT.

4. Specify service account name and description.

5. Select Create and Continue.

6. In the next step, click Select Role.

7. Select Custom and select the role created above .

8. Click Done.

9. Once the service account is created, the screen should open on the service account. If the screen does not appear, refresh the page with the service account list and select the service account created.

10. Record the full email. For example, service-account-name@project-id.iam.gserviceaccount.com

    Agent Function Service Account Email: ___________________

Protect Function IAM role

To create Protect Function IAM role:

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Navigate to IAM & Admin > Roles, Select CREATE ROLE.

3. Specify role name and description.

4. Select ADD PERMISSIONS.

5. Select the cloudkms.cryptoKeyVersions.useToDecrypt permission.

6. Click Add and then Create.

Protect Service Account

To create Protect Service Account:

1. Log in to Google Account and select the project where Protegrity service will be installed.

2. Navigate to IAM & Admin > Service Accounts.

3. Select CREATE SERVICE ACCOUNT.

4. Specify service account name and description.

5. Select Create and Continue.

6. In the next step, click Select Role. Then select Custom and select the role created above .

7. Click Done.

8. Once the service account is created, the screen should open on the service account. If the screen does not appear, refresh the page with the service account list and select the service account created.

9. Record the full email. For example, service-account-name@project-id.iam.gserviceaccount.com.

   Protect Function Service Account Email: ___________________

1.3.3 - Protect Service Installation

Preparation

1. Ensure that all the steps in pre-configuration are performed.

2. Log in to the Google Cloud account where Protegrity will be installed.

3. Select the project.

4. Ensure that you have access to shell command on your computer or Cloud Shell with Terraform CLI v0.14 or higher installed.

5. Ensure that the Terraform scripts provided by Protegrity are available on your local computer.

Install Protect Function via Terraform Scripts

Resources created with Terraform scripts include Protect Cloud Functions Service and other required resources depending on Terraform parameters. If you don’t specify the deployment bucket Terraform parameter, a new storage bucket will also be created. You can optionally choose to create a new service account with custom IAM role.

To install using Terraform:

1. From the command shell move to directory where you downloaded Protegrity installation bundle.

2. Unzip the bundle. Verify that the following files are available:

   • pty-protect-gcp/
   • main.tf
   • outputs.tf
   • protegrity-cloud-api-gcp-{version}.zip
   • README.md

3. Unzip the protegrity-cloud-protect-gcp-{version}.zip file. Verify that the following files are available:

   • pty-protect-gcp/
   • main.tf
   • outputs.tf
   • protegrity-cloud-protect-gcp-{version}.zip
   • README.md

4. Open the main.tf file and update Terraform backend information at the top of the file:


   terraform {
     backend "gcs" {
       bucket  = ""
       prefix  = "protegrity/terraform/pty-protect-gcp/state"
     }
   }


5. In the same main.tf file, specify the following Terraform variables: All the values were recorded in Google Cloud Project.

   Warning

   Google Cloud Function 2nd Generation currently does not support CMEK.

```
terraform init
```

7. Terraform will download necessary providers.

8. Run the following command to verify configuration and print out deployment plan.

   terraform plan


9. Run the following command to deploy resources to your account.

   terraform apply


10. Once deployment is complete Terraform will print output variables.

11. Record the following values:

    • protect_function_name: ________________________________
    • protect_function_url: __________________________
    • api_gateway_managed_service: _____________________________
    • api_gateway_protect_service_url: ____________________
    • protect_function_resource_name: _______________________

Deploy API Gateway (Optional)

Terraform module provided by Protegrity allows deploying Google API Gateway proxy for the Cloud Protect Service.

To deploy API Gateway:

1. In the main.tf file set the following Terraform variables.

   deploy_api_gateway = true
   api_gateway_jwt_issuer = "<service-account>@<google-cloud-project-id>.iam.gserviceaccount.com"
   api_gateway_jwks_uri = "https://www.googleapis.com/robot/v1/metadata/x509/<service-account>@<google-cloud-project-id>.iam.gserviceaccount.com"


   Below is the brief description of each Terraform variable. You can find more information in the Terraform README file.

   • deploy_api_gateway - enables GCP API Gateway proxy for Protect Cloud Function service
   • api_gateway_jwt_issuer - sets the JWT issuer. API Gateway checks the “iss” claim in the JWT for incoming requests. See x-google-issuer in https://cloud.google.com/endpoints/docs/openapi/openapi-extensions#x-google-issuer.
   • api_gateway_jwks_uri - URI of the provider’s public key set to validate the signature of the JSON Web Token. See x-google-jwks_uri in https://cloud.google.com/endpoints/docs/openapi/openapi-extensions#x-google-jwks_uri. In the example above the URI includes service account which credentials are used to issue the JWT token.

   Note

   For more information how to create service service account and send authenticated request refer to following GCP documentation: https://cloud.google.com/iam/docs/create-short-lived-credentials-direct

   Note

   The “aud” claim in the JWT must be set to Google API Gateway service name. You can find the API Gateway service name in API Gateway configuration in GCP console under Managed Service label. The service name is of the following format: <deployment-name>-<api-id>.apigateway.<google-cloud-project-id>.cloud.goog

2. Run terraform plan.

3. Run terraform apply.

4. Wait for the Terraform apply command to complete.

5. Once Terraform apply completes, it prints out deployment resources information. Record the following information from the Terraform output.

   api_gateway_managed_service: ___________________

   api_gateway_protect_service_url: ___________________

6. Follow instructions in the link below to generate JWT token which you can use to authorize request to Protegrity API Gateway endpoint. Use the same service account you configured in section above for api_gateway_jwks_uri.

   https://cloud.google.com/iam/docs/create-short-lived-credentials-direct#create-jwt

   Note

   The method above requires roles/iam.serviceAccountTokenCreator iam role.

   Record identity token returned in step above:

   gcloud_auth_token: ___________________

7. Run the following CURL command to test API Gateway deployment.

   curl -X POST "{api_gateway_protect_service_url}/api/v1/unprotect" \
           -H 'Authorization:Bearer {gcloud_auth_token}' \
           -d '{
             "user": "test",
             "data_element":"alpha",
             "data": ["UtfVk UHgcD!"]
           }'


8. Verify the following output:

   {"encoding":"utf8","results":["hello world!"],"success":true}


Test the Protect Function Installation

Before continuing with next steps, you can verify whether Cloud Functions are installed correctly. This step is optional and can be skipped.

1. Below you can find example CURL command to test your function.

2. Before you can execute it, you need to obtain temporary authentication token. Run the gcloud auth login and then gcloud auth print-identity-token commands. The logged in gcloud user must have the cloudfunctions.functions.invoke permission. Record the output of print identity token command.

   gcloud_auth_token: _________________

3. Replace {protect_function_url}; with value recorded in previous step.

4. Replace {gcloud_auth_token} with value recorded in above step.

5. Run the following CURL command to test Function deployment.

   curl -X POST "{protect_function_url}/pty/v1/unprotect" \
           -H 'Authorization:Bearer {gcloud_auth_token}' \
           -d '{
             "user": "test",
             "data_element":"alpha",
             "data": ["UtfVk UHgcD!"]
           }'


6. Verify the following output:

   {"encoding":"utf8","results":["hello world!"],"success":true}


1.3.4 - Policy Agent Installation

Policy Agent Function installation is done via Terraform scripts provided by Protegrity. Before running the template, some resources must be created manually.

ESA Server

Policy Agent function requires ESA server running and accessible from Agent Cloud Function on TCP port 8443. Make sure inbound connections on TCP:8443 are allowed for the network where ESA is hosted.

Note down ESA IP address:

ESA IP Address (EsaIpAddress): ___________________

Certificates on ESA

By default, ESA is configured with self-signed certificates, which can only be validated using self-signed CA certificate supplied in Cloud Function Environment variables configuration.

In case ESA is configured with publicly signed certificates, this section can be skipped since the Cloud Function will use public CA to validate ESA certificates.

To obtain self-signed CA certificate from ESA:

1. Log in to ESA Web UI.

2. Select Settings > Network > Manage Certificates.

3. Hover over Server Certificate and click on download icon to download the CA certificate.

4. After certificate is downloaded, open the PEM file in text editor and replace all new lines with escaped new line: \n.

   To escape new lines from command line, use one of the following commands depending on your operating system:

   Linux Bash:

   awk 'NF {printf "%s\\n",$0;}' ProtegrityCA.pem > output.txt


   Windows PowerShell:

   (Get-Content '.\ProtegrityCA.pem') -join '\n' | Set-Content 'output.txt'


5. Record the certificate content with new lines escaped.

   ESA CA Server Certificate (EsaCaCert): ___________________

   This value will be used to set pty_esa_ca_server_cert Terraform variable in installation section.

For more information about ESA certificate management refer to Certificate Management Guide in ESA documentation.

Identify or Create a new VPC

Google Cloud VPC is used to route traffic from Policy Agent Cloud Function to ESA. If your ESA is in a Google Cloud VPC, it is recommended to create a serverless VPC access and record its name:

google_vpc_access_connector_name: ___________________

If ESA is not on Google Cloud VPC, you can either create one or choose to let Terraform script to create one. The Terraform script will create the following elements:

• NAT gateway

  To connect to ESA outside the Google Cloud Network

• External IP address

  Can add it to the allowlist by the firewall in the network environment where ESA is hosted.

• Serverless VPC access

  Allows connectivity from the Cloud function to the VPC.

Creating ESA Credentials

Policy Agent Function requires ESA credentials to be provided as one of the two options:

• Option 1: Secret Manager
• Option 2: Custom Cloud Function )

Secret Manager

Secret Manager is the recommended option for storing ESA credentials.

Create ESA credentials secrets:

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Go to Security > Secret Manager.

3. Select CREATE SECRET.

4. Specify the Secret Value:

   {
     "username": "{esa_username}",
     "password": "{esa_password}"
   }


5. Select Create Secret.

6. Once the secret is created, you should see the secret screen opened. If not click on the secret name to see a screen with secret versions.

7. Click on Actions, next to the secret version you just created.

8. Select Copy Resource ID and record the full secret version path, For example, projects/{project-id}/secrets/{secret name}/versions/2.

   Secret resource id: ___________________

Custom Cloud Function

If you have the skills to write code, you may provide a custom Cloud Function that returns the ESA credentials to the Policy Agent. One use case is when reading the ESA credentials from a third-party password vault.

Create the Cloud Function:

1. Create a new 2nd gen Cloud Function using any runtime.

   1. The Policy Agent does not provide an input payload.

   2. The Cloud Function must return a response according to the following schema:

      response:
        type: object
          properties:
            username: string
            password: string


      For example,

      example output: {"username": "admin", "password": "Password1234"}


   3. Sample GCP Function in Python:

      def handler(request):
          return {"username": "admin", "password": "password1234"}


      Warning

      Protegrity does not recommend hardcoding ESA password in the clear.

2. Grant the Cloud Run Invoker role to the Policy Agent function service account.

3. Grant the cloudfunctions.functions.get permission to the Policy Agent function service account role.

4. Record the Function name:

   ESA CREDENTIALS FUNCTION NAME: _______________

Install Policy Agent Function through Terraform Scripts

Agent Terraform scripts provided by Protegrity create a Cloud Function in your Google account. If you don’t specify the deployment bucket Terraform parameter, a new storage bucket will also be created. You can also create the following optional resources by specifying the corresponding parameters:

• Service account with IAM role
• VPC with NAT external IP
• VPC access connector

To install Policy Agent Function through Terraform:

1. From command shell, move to the directory where you downloaded Protegrity installation bundle.

2. Unzip the bundle, then unzip the protegrity-agent-gcp-{version}.zip. Verify that the following files are available:

   • pty-agent-gcp/
   • main.tf
   • outputs.tf
   • README.md

3. Open the main.tf file and update Terraform backend information at the top of the file:


   terraform {
     backend "gcs" {
       bucket  = ""
       prefix  = "protegrity/terraform/pty-protect-gcp/state"
     }
   }


4. Set the bucket property to Terraform Backend Bucket Name recorded in Google Cloud Storage

5. Set the prefix property with value unique to your deployment.

6. In the same main.tf file, specify the following Terraform variables.

   Parameter	Description
   project_id	The Project ID recorded in the pre-configuration step
   region	The Region recorded in the pre-configuration step, for example, us-central1.
   deployment_id	Specify short name to identify deployment. This id will be added to all resources deployed with Terraform.
   deployment_bucket	Use Deployment Bucket Name recorded in pre-configuration or leave empty to create new bucket.
   deployment_bucket_location	Geographical location of deployment bucket, e.g., US, EU, ASIA.
   deployment_file_directory_path	Path to directory where deployment zip file is located. By default the deployment file should be in the same directory as this main.tf file.
   policy_download_cron_expression	Cron expression determining how often policy agent function will run to synchronize security policy from ESA.
   create_service_account	Leave this as false if you created service account in pre-configuration. Otherwise set to true.
   agent_function_service_account_email	Use Agent Function Service account recorded in pre-configuration or leave empty.
   create_vpc	Set this to true, if you would like to create VPC with NAT, external IP and vpc access connector, otherwise leave empty. This will be ignored if google_vpc_access_connector_name is specified.
   google_vpc_access_connector_name	Specify the existing VPC access connector name you identified in earlier step, otherwise leave empty. This setting will disable create_vpc = true.
   google_vpc_access_connector_full_resource_name	Alternative configuration for VPC access connector. If this parameter is set the google_vpc_access_connector_name will be ignored. Use this parameter, if vpc connector is in different region/project that the one specified for the deployment.
   labels	You can set this map to include labels for deployed resources. Pay attention to gcp label requirements. More information in: https://cloud.google.com/compute/docs/labeling-resources. For example, only use lowercase and maximum length of 63 characters.

   All the values were recorded in Pre-Configuration and this section’s previous steps.

7. Provide Policy update Terraform variables. In the same main.tf file, you can specify configuration related to policy update. Any of these variables can be updated at any given time by running the terraform again or directly in the GCP Console. Most of the values were recorded in previous installation steps.

   Parameter	Description	Notes
   pty_esa_ip	ESA IP address or hostname	ESA Server
   pty_esa_ca_server_cert	ESA self-signed CA certificate used by policy Agent Function to ensure ESA is the trusted server.	Recorded in step Certificates on ESA In case ESA is configured with publicly signed certificates, the pty_esa_ca_server_cert configuration will be ignored.
   gcp_esa_credentials_secret_resource_id	ESA username and password (encrypted value by Google Cloud Secrets Manager). For example, projects/{project-id}/secrets/{secret name}/versions/{version}	Creating ESA Credentials
   pty_esa_credentials_function	ESA credentials GCP function resource name. For example, projects/{project-name}/locations/{region}/functions/{esa-credentials-function-name}.	Recorded in step Option 2: Custom Cloud Function ESA CREDENTIALS FUNCTION NAME. Presence of gcp_esa_credentials_secret_resource_id will cause this value to be ignored. The Policy Agent Function must have network access and IAM permissions to call the ESA Credentials function you have created in Option 2: Custom Cloud Function.
   gcp_kms_key_resource_name	The Key full resource name. For Example, projects/{project-id}/locations/region/keyRings/ {key-ring}/cryptoKeys/{key-name}/cryptoKeyVersions/1	Key Management Service
   gcp_protect_function_resource_name	List of comma separated Protect function resource names. For Example, projects/{project-id}/ locations/{region}/functions/{function-name1},projects/{project-id}/ locations/{region}/functions/{function-name2}	Use protect_function_resource_name recorded in Protect Service Installation section.
   gcp_policy_retention_storage_bucket	Deployment Bucket Name where the encrypted policy will be written.	You can use deployment bucket recorded in Google Cloud Storage section, or you can specify other existing bucket.
   gcp_policy_version_object_key	Filename of the encrypted policy stored in the Deployment Bucket Name	Default: policy.zip
   retain_policy_versions	Number of policy versions to retain as backup. (e.g. 2 will retain the latest 2 policies and remove older ones). -1 retains all.	Default: 10
   disable_deploy	This flag can be either 1 or 0. If set to 1, then the agent will not update protector function with the newest policy. Else, the policy will be saved in the cloud storage bucket and deployed to the protector function. Warning Agent deployment requires a deployed Protect or Log Forwarder Cloud Run function when disable_deploy is set	Default: 0
   log_level	Application and audit logs verbiage level	Default: INFO. Allowed values: DEBUG – the most verbose INFO, WARNING, ERROR – the least verbose
   policy_pull_timeout	Time in seconds to wait for the ESA to send the full policy	Default: 20
   pty_core_casesensitive	Specifies whether policy usernames should be case sensitive	Default: no. Allowed values: yes, no
   pty_core_emptystring	Override default behavior. Empty string response values are returned as null values. For instance, (un)protect(’’) -> null (un)protect(’’) -> ''	Default: empty. Allowed values: null, empty
   esa_connection_timeout	Time in seconds to wait for the ESA response	Default: 5s
   pty_addipaddressheader	When enabled, agent will send its source IP address in the request header. This configuration works in conjunction with ESA hubcontroller configuration ASSIGN_DATASTORE_USING_NODE_IP (default=false). See Associating ESA Data Store With Cloud Protect Agent for more information.	Default: yes. Allowed values: yes, no
   pty_datastore_key	ESA policy datastore public key fingerprint (64 char long) e.g. 123bff642f621123d845f006c6bfff27737b21299e8a2ef6380aa642e76e89e5.	Note This configuration is not applicable for ESA versions lower than 10.2. The export key is the public part of an asymmetric key pair created in a Create KMS Key. A user with Security Officer permissions adds the public key to the data store in ESA via Policy Management > Data Stores > Export Keys. The fingerprint can then be copied using the Copy Fingerprint icon next to the key. Refer to Exporting Keys to Datastore for details. Note For PPC deployments, see PPC Appendix: Policy Agent Certificate and Key Guidance for details on obtaining and using the datastore key fingerprint.
   pty_sync_datastore	Optional name of the policy datastore to sync with ESA. Refer to ESA documentation for more information on policy datastore sync.	Default: ""

8. From local command line or Cloud Shell, change directory to location of the main.tf, for example:

   protegrity-agent-gcp-{version}/pty-agent-gcp/


9. Run terraform init.

   Terraform will download necessary providers.

10. Run terraform plan to verify configuration and print out deployment plan.

11. Run terraform apply to deploy resources to your account. Once deployment is complete, Terraform will print output variables.

12. Below is the sample output from successful deployment.


            Apply complete! Resources: 1 added, 0 changed, 0 destroyed.
            Outputs:
            agent_function_service_account_email = "pty-agent-test@test.iam.gserviceaccount.com"
            deployment_bucket_name = "test-bucket"
            nat_ip = 0
            policy_agent_function_deployment_object = "pty-agent-test-1.0.1.zip"
            policy_agent_function_name = "pty-agent-test"


Test Agent Function Installation

After configuration is complete, you can test the function.

To test and run the Policy Agent Function:

1. From the Google Cloud console, go to Cloud Run Functions or Cloud Run.

2. Click on the function you just deployed: pty_agent_{deployment_id}.

3. Click Test button at the top right section of the screen.

4. Scroll down to CLI test command.

5. Copy and run the curl command to trigger the agent. Alternatively, use the option Test in Cloud Shell.

6. Wait for the function to complete.

   Note

   The Policy Agent function deploys a new version of the Cloud Protect Function with updated policy. This process may take several minutes. During this time, the previous policy version remains available until the function update is complete.

7. Navigate to the LOGS tab to view agent execution logs.

8. Alternatively, you may review the logs by navigating to Logging from your Google Console. In the Log Explorer select the All resources dropdown, then Cloud Run Revision > pty-agent-{deployment-id} and apply.

   Note

   Example logs (most recent first):


   Function execution took 23892 ms, finished with status: 'ok'
   iap.policy_deployer:INFO:Deleting object [policy_v07-26-2021_21-00-00.zip]
   iap.policy_deployer:INFO:Deleting object [policy_v07-26-2021_19-03-23.zip]
   iap.policy_deployer:INFO:Removing old function versions in [test-artifacts]. Will retain [1] versions.
   iap.policy_deployer:INFO:Updating function [projects/cloud-engineering-315519/locations/us-central1/functions/pty-protect-test] with new deployment artifact [test-artifacts/policy_v07-26-2021_21-00-01.zip] ...
   iap.imp_creator:INFO:Uploading encrypted policy data to: [test-artifacts/policy_v07-26-2021_19-03-23.zip]
   iap.imp_creator:INFO:Preparing deployment package ...
   iap_agent_gcp.cloud_functions_util:INFO:Downloading function deployment package ...
   iap.imp_creator:INFO:Encrypting policy package ...
   iap.policy_agent:INFO:Preparing new policy deployment ...
   iap.policy_agent:WARNING:Current policy deployment has no checksum_mapping metadata:
   iap.imp_creator:INFO:Checking current policy version ...
   iap.policy_agent:INFO:Current deployment package version: [policy_v07-26-2021_18-51-43.zip].
   iap.policy_agent:INFO:Getting current policy metadata ...
   iap.imp_creator:INFO:Policy downloaded successfully ...
   iap.imp_creator:INFO:PepServer started ...
   iap.imp_creator:INFO:Starting PepServer ...
   iap.imp_creator:INFO:PepServer configured successfully
   iap.imp_creator:INFO:Downloading certificates from ESA ...
   iap.imp_creator:INFO:Configuring PepServer ...
   iap.policy_agent:INFO:Starting policy agent ...
   iap.policy_agent:INFO:Using Secret Manager [GCP_ESA_CREDENTIALS_SECRET_RESOURCE_ID] to retreive ESA credentials.
   iap.policy_agent:INFO:PTY_CORE_CASESENSITIVE [no]
   iap.policy_agent:INFO:PTY_CORE_EMPTYSTRING [empty]
   iap.policy_agent:INFO:RETAIN_POLICY_VERSIONS [1]
   iap.policy_agent:INFO:GCP_PROTECT_FUNCTION_RESOURCE_NAME [projects/test/locations/us-central1/functions/pty-protect-test]
   iap.policy_agent:INFO:GCP_POLICY_VERSION_OBJECT_KEY [policy.zip]
   iap.policy_agent:INFO:GCP_POLICY_RETENTION_STORAGE_BUCKET [test-artifacts]
   iap.policy_agent:INFO:GCP_KMS_KEY_RESOURCE_NAME [projects/test/locations/us-central1/keyRings/test-key-ring/cryptoKeys/test-protect-asymmetric/cryptoKeyVersions/1]
   iap.policy_agent:INFO:GCP_ESA_CREDENTIALS_SECRET_RESOURCE_ID [projects/1234/secrets/ESA_ADMIN_CREDENTIALS/versions/2]
   iap.policy_agent:INFO:PTY_ESA_IP [54.236.107.39]
   iap.policy_agent:INFO:POLICY_PULL_TIMEOUT [20]
   iap.policy_agent:INFO:DISABLE_DEPLOY [0]
   Function execution started


Troubleshooting

Configure additional logging:

1. Set log_level Terraform variable on the Agent function to DEBUG.

2. In the GCP Logs Explorer, you can run the query below, replacing placeholders with your deployment id and project name.

   resource.type="cloud_run_revision"
   resource.labels.service_name=~"pty-agent-<deploymentd-id>"
   severity=ERROR OR textPayload=~"\[error\]"
   -logName="projects/<gcp-project-id>/logs/run.googleapis.com%2Frequests"


3. Expand each log entry for more details. Check for jsonPayload > exception to see more detailed error.

iap_agent_gcp.cloud_functions_util.CloudFunctionsApiException: Resource 'projects/<account>/locations/<region>/functions/protegrity-protect-<deployment-id>' was not found

[ERROR] policy_agent:Invalid GCP_PROTECT_FUNCTION_RESOURCE_NAME parameter value. Must be a comma separated list of Lambda Function names or ARNs.

[ERROR] iap_agent_gcp.cloud_functions_util:<HttpError 403 when requesting https://cloudfunctions.googleapis.com/v2/projects/<account>/locations/<region>/functions/pty-protect-<deployment-id>:generateDo
wnloadUrl?alt=json returned "Permission 'cloudfunctions.functions.sourceCodeGet' denied on 'projects/<account>/locations/<region>/functions/<deployment-id>'". Details: "Permission 'cloudfunctions.functions.sourceCodeGet' denied on 'projects/<account>/locations/<region>/functions/pty-protect-<deployment-id>'">
[ERROR] policy_agent:Permission 'cloudfunctions.functions.sourceCodeGet' denied on 'projects/<account>/locations/<region>/functions/pty-protect-<deployment-id>'
...
iap_agent_gcp.cloud_functions_util.CloudFunctionsApiException: Permission 'cloudfunctions.functions.sourceCodeGet' denied on 'projects/<account>/locations/<region>/functions/pty-protect-<deployment-id>'

1.3.5 - Audit Log Forwarder Installation

Audit Log Forwarder installation is done via Terraform scripts provided by Protegrity in the installation bundle.

ESA Audit Store Configuration

ESA server is required as the recipient of audit logs. Verify the information below to ensure ESA is accessible and configured properly.

1. ESA server running and accessible on TCP port 9200.

2. Audit Store service is configured and running on ESA. For information related to ESA Audit Store configuration, refer to Audit Store Guide.

Certificates on ESA

By default, ESA is configured with self-signed certificates, which can only be validated using self-signed CA certificate supplied in Log Forwarder configuration.

In case ESA is configured with publicly signed certificates, this section can be skipped since the Log Forwarder will use public CA to validate ESA certificates.

To obtain self-signed CA certificate from ESA:

1. Download ESA CA certificate from the /etc/ksa/certificates/plug directory of the ESA

2. After certificate is downloaded, open the PEM file in text editor and replace all new lines with escaped new line: \n.

   To escape new lines from command line, use one of the following commands depending on your operating system:

   Linux Bash:

   awk 'NF {printf "%s\\n",$0;}' CA.pem > output.txt


   Windows PowerShell:

   (Get-Content '.\CA.pem') -join '\n' | Set-Content 'output.txt'


3. Record the certificate content with new lines escaped.

   ESA CA Server Certificate (EsaCaCert): ___________________

   This value will be used to set pty_esa_ca_server_cert Terraform variable in installation section. Install Log Forwarder via Terraform

For more information about ESA certificate management refer to Certificate Management Guide in ESA documentation.

VPC configuration

Similar to Policy Agent Function, log forwarder function requires Google Cloud VPC to route traffic from the function to ESA. Review the VPC configuration steps for agent in section Identify or Create a new VPC. Same VPC connector as the policy agent can be used. Note down VPC connector name:

google_vpc_access_connector_name: ___________________

ESA Authentication

Audit Log Forwarder must authenticate with ESA using certificate-based authentication with client certificate and certificate key. Download the following certificates from the /etc/ksa/certificates/plug directory of the ESA:

Both certificate and certificate key must be converted to single-line values using code similar to the following examples.

Client certificate (client.pem):

• Powershell
• Bash

$folder = 'C:\Temp'
cd $folder
(Get-Content "$folder\client.pem") -join '\n' | Set-Content "$folder\one-liner-client.pem"
cat "$folder\one-liner-client.pem"

folder="/tmp"
cd "$folder"
awk 'NF {printf "%s\\n",$0}' "client.pem" > "one-liner-client.pem"
cat "one-liner-client.pem"

Client certificate key (client.key):

• Powershell
• Bash

$folder = 'C:\Temp'
cd $folder
(Get-Content "$folder\client.key") -join '\n' | Set-Content "$folder\one-liner-client.key"
cat "$folder\one-liner-client.key"

folder="/tmp"
cd "$folder"
awk 'NF {printf "%s\\n",$0}' "client.key" > "one-liner-client.key"
cat "one-liner-client.key"

While installing using Terraform template:

1. Provide single-line client certificate for pty_esa_client_cert
2. Provide ID of the GCP secret containing the single-line certificate key for pty_esa_client_cert_key_secret_id Secret is created in a later step

Configure ESA Secrets In GCP Secret Manager

Audit Log Forwarder Function uses GCP Secret Manager to store ESA Audit Store credentials used during authentication.

For information on how to configure basic and certificate authentication for Audit Store on ESA refer to Audit Store Guide.

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Go to Security > Secret Manager.

3. Select CREATE SECRET.

4. Specify the Secret Value:

   {
     "username": "admin",
     "password": "{esa_password}"
   }


5. Select Create Secret.

6. Once the secret is created, you should see the secret screen opened. If not click on the secret name to see a screen with secret versions.

7. Click on Actions, next to the secret version you just created.

8. Select Copy Resource ID and record the full secret version path, for example, projects/{project-id}/secrets/{secret name}/versions/2.

   ESA Log Forwarder Credentials Secret Name: _________________

9. Create another secret with single-line contents of ESA client certificate key file

   See Certificate Authentication for details on client certificate key

10. Record the full secret version path, for example, projects/{project-id}/secrets/{secret name}/versions/1.

    ESA Log Forwarder Client Certificate Key Secret Name: _________________

Create Log Forwarder Service Account

To create Log Forwarder Service Account:

1. Log in to Google Account and select the project where Protegrity service will be installed.

2. Navigate to IAM & Admin > Service Accounts.

3. Select CREATE SERVICE ACCOUNT.

4. Specify service account name and description.

5. Select Create and Continue.

6. In the next step, click Select Role. Then select the following roles:

   • Cloud KMS CryptoKey Decrypter
   • Pub/Sub Publisher
   • Secret Manager Secret Accessor

7. Click Done.

8. Once the service account is created, the screen should open on the service account. If the screen does not appear, refresh the page with the service account list and select the service account created.

9. Record the full email. For example, service-account-name@project-id.iam.gserviceaccount.com.

   Log Forwarder Function Service Account Email: ___________________

Create Service Account For Forwarder Pub/Sub

Pub/Sub service requires Cloud Run Invoker permissions in order to be able to send messages to the Forwarder function.

1. Log in to Google Account and select the project where Protegrity forwarder will be installed.

2. Navigate to IAM & Admin > Service Accounts.

3. Select CREATE SERVICE ACCOUNT.

4. Specify service account name and description.

5. Select Create and Continue.

6. In the next step, click Select Role. Then select Cloud Run Invoker.

7. Click Done.

8. Once the service account is created, the screen should open on the service account. If the screen does not appear, refresh the page with the service account list and select the service account created.

9. Record the full email. For example, service-account-name@project-id.iam.gserviceaccount.com.

   Pub/Sub Log Forwarder Service Account Email: ___________________

Preparation

1. Ensure that all the steps in Google Cloud Project are performed.

2. Log in to the Google Cloud account where Protegrity will be installed.

3. Select the project.

4. Ensure that you have access to shell command on your computer or Cloud Shell with Terraform CLI v0.14 or higher installed.

5. Ensure that the Terraform scripts provided by Protegrity are available on your local computer.

Install Log Forwarder Function via Terraform Scripts

Resources created with Terraform scripts include Audit Log Forwarder Cloud Functions Service and Pub/Sub topic. If you don’t specify the deployment bucket Terraform parameter, a new storage bucket will also be created. You can optionally choose to create a new service account with custom IAM role.

To install using Terraform:

1. From the command shell move to directory where you downloaded Protegrity installation bundle.

2. Unzip the bundle, then unzip the protegrity-gcp-bigquery-{version}.zip. Navigate to pty-log-forwarder-gcp/. Verify that the following files are available:

   • pty-log-forwarder-gcp/
   • main.tf
   • outputs.tf
   • protegrity-cloud-api-gcp-{version}.zip
   • README.md

3. Open the main.tf file and update Terraform backend information at the top of the file:

   terraform {
     backend "gcs" {
       bucket  = ""
       # The bucket/prefix combination must be unique for different deployments
       # to avoid conflicting Terraform states and accidental resources destruction.
       # prefix = "protegrity-gcp-bigquery/forwarder/<deployment_id>/tf-state"
     }
   }


4. Set the bucket property to Terraform Backend Bucket Name recorded in Google Cloud Storage

5. Set the prefix property with value unique to your deployment.

6. In the same main.tf file, specify the following Terraform variables: All the values were recorded in Google Cloud Project.

   Warning

   Google Cloud Function 2nd Generation currently does not support CMEK.

   Parameter	Description
   project_id	The project id recorded in the pre-configuration step
   region	The Region recorded in the pre-configuration step.
   deployment_id	Specify short name to identify deployment. This id will be added to all resources deployed with Terraform.
   deployment_bucket	Use Deployment Bucket Name recorded in pre-configuration or leave empty to create new bucket.
   create_service_account	Leave this as false if you created service account in pre-configuration. Otherwise set to true.
   forwarder_function_service_account_email	Use Forwarder Function Service account recorded in pre-configuration or leave empty.
   pub_sub_log_forwarder_service_account_email	Service account of the audit log Pub/Sub trigger. The service account must be assigned Cloud Run Invoker (roles/run.invoker) role.
   create_vpc	If create_vpc flag is set, new vpc will be created together with vpc connector, NAT and external IP Use this flag if you have VPC admin permissions in your Google Account. If you set it to false, you can specify the existing VPC in the google_vpc_access_connector_name parameter.
   google_vpc_access_connector_name	Use existing VPC connector to associate with Log Forwarder Function. You can specify either the VPC connector name or the full resource name if vpc connector is in different region/project that the one specified for the deployment. You can alternatively set the use google_vpc_access_connector_full_resource_name. Both parameters are optional. Full resource name takes precedence over connector name.
   log_destination_esa_ip	Ip address of the ESA where Protector logs will be sent to.
   pty_esa_ca_server_cert	ESA self-signed CA certificate used by log forwarder function to ensure ESA is the trusted server. See documentation for more details.
   esa_credentials_secret_resource_id	GCP Secret Manager secret id where ESA Fluent Bit logger credentials are stored.
   pty_esa_client_cert	Single-line ESA client certificate content. See Certificate Authentication for details on client certificate
   pty_esa_client_cert_key_secret_id	GCP Secret Manager secret id where single-line ESA client certificate key content is stored. See Configure ESA Secrets In GCP Secret Manager for details on client certificate key secret
   min_log_level	Minimum log level for log forwarder function. Must be one of the following: [off,severe,warning,info,config,all].
   esa_tls_disable_cert_verify	Disable certificate verification when connecting to ESA. This is only for dev purposes, should not be used in production environment.
   esa_connect_timeout	Esa connection timeout in seconds.
   esa_virtual_host	ESA Virtual Host.
   audit_log_flush_interval	Time interval in seconds used to accumulate audit logs before sending to ESA. Default value: 10 Min value: 1 Max value: 900
   dlq_topic_message_retention_duration	Indicates the minimum duration to retain a message in dead letter queue topic in case log destination server is not available. Value must be decimal number, followed by the letter s (seconds). Cannot be more than 31 days or less than 10 minutes. Default value is 1 day
   audit_log_dead_letter_topic	This parameter is expected to be used in a separate deployment to replay dead letter queue messages.
   max_instance_count	GCP Cloud Functions advanced configuration
   available_memory_mb	GCP Cloud Functions advanced configuration
   timeout_seconds	GCP Cloud Functions advanced configuration
   gen2_available_cpu	2nd Gen Cloud Function advanced configuration
   gen2_container_concurrency	2nd Gen Cloud Function advanced configuration
   upgrade_step	Set this variable when upgrading to the latest version.
   labels	You can set this map to include labels for deployed resources. Pay attention to GCP label requirements. For more information, refer to the following link https://cloud.google.com/compute/docs/labeling-resources. For example, only use lowercase and maximum length of 63 characters.

7. From local command line or Cloud Shell, change directory to location of the main.tf, for example:

   pty-log-forwarder-gcp-{version}/pty-log-forwarder-gcp/


8. Run the following command.

   terraform init


9. Terraform will download necessary providers.

10. Run the following command to verify configuration and print out deployment plan.

    terraform plan


11. Run the following command to deploy resources to your account.

    terraform apply


12. Once deployment is complete Terraform will print output variables.

13. Record the following values:

    • forwarder_function_name: ____________________________
    • forwarder_function_url: ____________________________
    • forwarder_function_resource_name: __________________

Turn on Instance-based billing.

Both Protect and Log Forwarder functions must run for a short period of time after all requests are handled. In order for the GCP Cloud Run service to allow that, the Instance-based billing feature must be enabled for both function deployments.

To enable Instance-based billing:

1. Log in to Google Account and select the project where Protegrity Cloud Run Function was installed.

2. Navigate to Cloud Run.

3. Click on the Cloud Function name.

4. In Cloud Run revision view, select Edit & deploy new revision.

5. Scroll down to Billing.

6. Select Instance-based.

7. Click DEPLOY.

8. Repeat the steps for Log Forwarder function.

Test Log Forwarder Function Installation

Before continuing with next steps, you can verify whether Log Forwarder Function is installed correctly. This step is optional and can be skipped.

1. Below you can find example CURL command to test your function.

2. Before you can execute it, test if you can obtain temporary authentication token. Run the gcloud auth login and then gcloud auth print-identity-token commands. The logged in gcloud user must have the Cloud Run Invoker permissions. Continue to the next step if the command succeeds and prints the token.

3. Replace {forwarder_function_url}; with value recorded in previous step.

4. Run the following CURL command to test Function deployment.

   curl {forwarder_function_url} \
   -H "Authorization: Bearer $(gcloud auth print-identity-token)" \
   -H "Content-Type: application/json" \
   -H "ce-id: 123451234512345" \
   -H "ce-specversion: 1.0" \
   -H "ce-time: 2020-01-02T12:34:56.789Z" \
   -H "ce-type: google.cloud.pubsub.topic.v1.messagePublished" \
   -H "ce-source: //pubsub.googleapis.com/projects/MY-PROJECT/topics/MY-TOPIC" \
   -d '{
       "message": {
           "data": "'"$(echo '{"additional_info":{"description":"Data unprotect operation was successful.","query_id":"sf-query-id:k6-test-df51a612-4739-4cfb-9fe4-6ec548b70d23"},"client":{},"cnt":4000,"correlationid":"sf-query-id:k6-test-df51a612-4739-4cfb-9fe4-6ec548b70d23","level":"SUCCESS","logtype":"Protection","origin":{"hostname":"localhost","time_utc":1725558586},"process":{"id":1},"protection":{"audit_code":8,"dataelement":"alpha","datastore":"SAMPLE_POLICY","mask_setting":"","operation":"Unprotect","policy_user":"master_user"},"protector":{"core_version":"1.2.2+42.g01eb3.HEAD","family":"cp","pcc_version":"3.4.0.20","vendor":"gcp.snowflake","version":"3.1.0.158"},"signature":{"checksum":"7CE5FFCE9DBE570AAA72D1BB20CD083532EF8FAD3E96E38629EB92E837272D8E","key_id":"676c5178-756d-4363-9"}}' | base64 -w 0)"'",
           "attributes": {},
           "messageId": "",
           "publishTime": "2014-10-02T15:01:23Z",
           "orderingKey": ""
      }
   }'


5. In GCP Logs Explorer console verify that the following output appears in the logs:

   Request finished HTTP/1.1 POST http://pty-forwarder-31-smoke-jf-pfadh7riaq-uc.a.run.app/ - 200 0 - 75.6570ms


6. Warning

   Test steps will only succeed if the Policy Agent has not updated the Log Forwarder policy. Once updated, logs must be signed with your policy, and the sample data blob above will no longer pass the check, resulting in the error below: [/jenkins/workspace/iaplambda_release_3.1/src/iap/logging/log-aggregator.cpp:66] Failed to aggregate log entry at index 0
   .

Grant Pub/Sub Publisher Permission to the Protect Function Service Account

Protect function requires permissions to publish audit log messages to Pub/Sub.

1. Log in to Google Account and select the project where Protegrity service will be installed.

2. Navigate to IAM & Admin.

3. Search for protector function service account email recorded in protect service installation step.

4. Select Edit principal pencil icon.

5. Select ADD ANOTHER ROLE.

6. Select Pub/Sub Publisher.

7. Click Save.

Protect Function Pub/Sub Log Output

Protect function must be configured to output audit logs to Pub/Sub topic.

To configure Protect function audit log output:

1. Go to Protect function Terraform deployment.

2. Navigate to pty-protect-gcp/main.tf.

3. Set Terraform variable pty_log_output=“pub_sub”.

4. Set Terraform variable pty_pub_sub_topic to log forwarder Pub/Sub topic.

   Note

   You can obtain the topic resource name from Log Forwarder Terraform output: audit_log_topic.

5. Run terraform apply.

Troubleshooting

Configure additional logging:

1. Set min_log_level Terraform variable on both Protect function and Log Forwarder function to config.

2. In the GCP Logs Explorer, you can run the query below, replacing placeholders with your deployment id and project name.

   resource.type="cloud_run_revision"
   resource.labels.service_name=~"pty-(protect|forwarder)-<deploymentd-id>"
   severity=ERROR OR textPayload=~"\[error\]"
   -logName="projects/<gcp-project-id>/logs/run.googleapis.com%2Frequests"


3. Expand each log entry for more details. Check for jsonPayload > exception to see more detailed error.

Pub/Sub configuration error.

Failed to send x/y audit logs to GCP Pub/Sub.

Audit log sink error: Unable to deliver all logs.

opensearch.0: Dropped records: 1/1

[error] [output:opensearch:opensearch.0] HTTP status=401 URI=/_bulk

1.3.6 -

Prerequisites

1.3.7 -

Required Skills and Abilities

1.4 - REST API

The following sections describe key concepts for understanding the REST API.

Base URL: https://{YOUR_REGION}-{YOUR_PROJECT_ID}.cloudfunctions.net/{FUNCTION_NAME}

Substitute:

• YOUR_REGION - is the region where your function is deployed.
• YOUR_PROJECT_ID - is your Google Cloud Platform project ID.
• FUNCTION_NAME - recorded during the Protect function installation name.

1.4.1 - Policy Users

Policy Users

Protegrity Policy roles defines the unique data access privileges for every member. The protector function protects the data with the username sent in either the JWT-formatted authorization header, the request body or service user in the environment variables.

The protector function behavior can be set in the cloud function environment variables as described in Install Protect Function via Terraform Scripts

1.4.2 - JWT Verification

JWT Verification

Cloud Protect function can authenticate JWTs with an OpenID endpoint or a stored certificate/secret.

The protector must be able to reach specified OpenID endpoint to obtain the public key when OpenID settings are enabled. The retrieved key is used to verify the signature. Several additional claims are verified against the configuration provided to the protect function when OpenID is enabled: issuer, audience, appid (optional).

Availability of an OpenID endpoint from the protector may not be feasible or a non-OpenID issuer may be in use. In those cases, a stored certificate/secret may be used to validate the jwt signature by enabling jwt_verify and including a base64 encoded certificate/secret in jwt_secret_base64 configuration. Additional claims are not verified.

Secret

Stored secret verification example using jwt_verify and jwt_secret_base64 configurations:

1. Navigate to the cloud function main.tf configuration file, and find the section Parameters applicable when authorization = jwt
2. Edit/replace the entries as indicated below, then save and apply the configuration:

-----BEGIN PUBLIC KEY-----
MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQC4fkg/JYyN3Skr6RYLiAd/Yhl0
2TE3/HzHSNPnCaRdUakGp9og7oXBMcoadFDjnoSq1sz+gUHnpoO7s2fwkD5Q4OnC
BGD3oKP2A4PlOOWD2B2cVmMqX/vf1nAA/343496jsbfgkh1Q7LTzR0IXfdii0o1U
CbvrVCuaBoyiv4TxWQIDAQAB
-----END PUBLIC KEY-----

LS0tLS1CRUdJTiBQVUJMSUMgS0VZLS0tL
S0KTUlHZk1BMEdDU3FHU0liM0RRRUJBUV
VBQTRHTkFEQ0JpUUtCZ1FDNGZrZy9KWXl
OM1NrcjZSWUxpQWQvWWhsMAoyVEUzL0h6
SFNOUG5DYVJkVWFrR3A5b2c3b1hCTWNvY
WRGRGpub1NxMXN6K2dVSG5wb083czJmd2
tENVE0T25DCkJHRDNvS1AyQTRQbE9PV0Q
yQjJjVm1NcVgvdmYxbkFBLzM0MzQ5Nmpz
YmZna2gxUTdMVHpSMElYZmRpaTBvMVUKQ
2J2clZDdWFCb3lpdjRUeFdRSURBUUFCCi
0tLS0tRU5EIFBVQkxJQyBLRVktLS0tLQ==

OpenID

Verification example using openid_* configuration parameters:

1. Navigate to the cloud function main.tf configuration file, and find the section Parameters applicable when openid_enabled = true
2. Edit/replace the entries as indicated below, then save and apply the configuration:

1.4.3 - Authorization Header

Authorization Header

Allowing unauthenticated HTTP function invocation on Google Cloud protector function.

The Protect function will validate the JWT in the Authorization header.

Authenticating for invocation on Google Cloud protector function. All requests to the protector function will need to send the Google JWT in the Authorization header.

When PTY_GCP_JWT_HEADER is not set or it is false the Protect function will validate the JWT in the Authorization header.

When PTY_GCP_JWT_HEADER = true the Protect function will validate the JWT in the X-PTY-Authorization header.

1.4.4 - Export an OpenAPI Spec

Export an OpenAPI Spec

Once the Cloud API on GCP is installed, you can export the OpenAPI documentation file from:

{base url}/pty/v1/openapi

Authentication and Authorization configurations are enforced on the openapi endpoint URL.

1.4.5 - v1 Specification

Request

AWS Lambda service limits maximum size of payload to 6 MB. Client applications of Protegrity Cloud API must ensure their payload size is within this limit. This applies to all types of requests described below.

Performs a policy operation such as protect, unprotect, or reprotect.

• URI

  /v1/protect or /v1/unprotect or /v1/reprotect

• Method

  POST

• Parameters

  data: Input data to the policy operation.

  data_element: Data element to use for the policy operation.

  encoding: Optional, encoding of the data. One of: base64, base64_mime, base64_pem, base64_url, hex, or utf8. Defaults to hex for binary data elements, otherwise defaults to utf8.

  external_iv: Optional, external initialization vector.

  old_data_element: (reprotect) Data element for unprotecting the input.

  old_external_iv: (reprotect) Optional, external initialization vector for the input.

  query_id: Optional, identifier for the request.

  user: User performing the operation.

• Result

  Returns the output of the policy operation.

Example 1 - without external IV

{
  "encoding": "utf8",
  "query_id": "1",
  "user": "user1",
  "data_element": "Alphanum",
  "data":[<data1>,<data2>]
}

Example 2 - with external IV

{
  "encoding": "utf8",
  "query_id": "1",
  "user": "user1",
  "data_element": "Alphanum",
  "external_iv": "abc123",
  "data":[<data1>,<data2>]
}

Example 3 - reprotect

{
  "encoding": "utf8",
  "query_id": "1",
  "user": "user1",
  "data_element": "deName",
  "old_data_element": "Alphanum",
  "data":[<data1>,<data2>]
}

Performs policy operations using different data elements for each data set.

• URI

  /v1/protect or /v1/unprotect or /v1/reprotect

• Method

  POST

• Parameters

  encoding: Optional, encoding of the data. One of: base64, base64_mime, base64_pem, base64_url, hex, or utf8. Defaults to hex for binary data elements, otherwise defaults to utf8.

  query_id: Optional, prefix for the request identifier.

  user: User performing the operation.

  arguments[].data: Input data to the policy operation.

  arguments[].data_element: Data element to use for the policy operation.

  arguments[].external_iv: Optional, external initialization vector.

  arguments[].id: Optional, request identifier.

  arguments[].old_data_element: (reprotect) Data element for unprotecting the input.

  arguments[].old_external_iv: (reprotect) Optional, external initialization vector for the input.

Example 4 - multiple data elements support payload

{
  "encoding": "utf8",
  "query_id": "query1234",
  "user": <policy_user>,
  "arguments": [
    {
      "id": "1",
      "external_iv": "<external iv>",
      "data_element": "<data element name>",
      "data":["<data1>","<data2>"]
    },
    {
      "data_element": <data element name>,
      "data":["<data1>","<data2>"]
    }
  ]
}

• External IV

  The External IV feature provides an additional level of security by allowing different tokenized results across protectors for the same input data and token element, depending on the External IV set on each protector. External IVs must adhere to certain guardrails and not all data elements support External IV. To read more about the Tokenization model with External IV, refer to the External Initialization Vector (IV) chapter in the Protection Methods Reference.

Response

responsePayloadV1:
type: object
  properties:
    success:
      type: bool
    error_msg:
      type: string
      description: When success is false, error_msg is included
    results:
      type: array
      items:
        type: string

Example success:

{
  "encoding": "utf8",
  "results":["str1","str2"],
  "success": true
}

If the request was successful, the success flag will always be true.

Example failure:

{
  "error_msg": "token expired",
  "success": false
}

If the request fails, the success flag will always be false.

Multi Data Elements Support Payload

responsePayloadV2:
type: object
  properties:
    success:
      type: boolean
    results:
      type: array
        items:
          type: object
          properties:
            success:
              type: bool
            error_msg:
              type: string
              description: When success is false, error_msg is included
            id:
              type: string
              description: When id is sent in the request payload, id is included in the response
            results:
              type: array
              items:
                type: string

Example success:

{
  "encoding": "utf8",
  "results":[
    {
      "encoding": "utf8",
      "results":["str1","str2"],
      "success": true
    },
    {
      "encoding": "utf8",
      "results":["str1","str2"],
      "success": true
    }
  ],
  "success": true
}

If the all the subrequests were successful, the success flag will be true.

Example failure:

{
  "results": [
    {
      "error_msg":
      "Protect failed. Data element not found. Refer to audit log for details",
      "success": false
    },
    {
      "encoding": "utf8",
      "results":["str1","str2"],
      "success": true
    }
  ],
  "success": false
}

It is possible to have a mix of successful and unsuccessful results. In this case, the global success flag will be false.

1.4.6 - Legacy Specification

Protegrity has multiple products with REST API capabilities, such as Protection Server (out of support), DSG, and the latest product - IAP REST. Each one has its use case. To help you move to cloud-native implementation, Cloud Product REST API supports legacy payload.

• Request
• Response

Request

Performs a policy operation such as protect, unprotect, or reprotect.

• Method

  POST

• Parameters

  dataelementname: (protect/unprotect) Data element to use for the policy operation.

  externaliv: (protect/unprotect) Optional, external initialization vector.

  newdataelementname: (reprotect) Data element to use for the output.

  newexternaliv: (reprotect) Optional, external initialization vector for the output.

  olddataelementname: (reprotect) Data element to use for the input.

  oldexternaliv: (reprotect) Optional, external initialization vector for the input.

  policyusername: User performing the operation.

  bulk.id: Optional, identifier for the request.

  bulk.data[].content: Input data to the policy operation.

• Result

  Returns the output of the policy operation.

Example 1 - protect without external IV

{
  "protect": {
    "policyusername": "user1",
    "dataelementname": "Alphanum",
    "bulk": {
      "id": "1",
      "data": [
        {
          "content": <Data encoded in base64>
        }
      ]
    }
  }
}

Example 2 - protect with external IV

{
  "protect": {
    "policyusername": "user1",
    "dataelementname": "Alphanum",
    "externaliv": "abc123",
    "bulk": {
      "id": "1",
      "data": [
        {
          "content": <Data encoded in base64>
        }
      ]
    }
  }
}

Example 3 - unprotect

{
  "unprotect": {
    "policyusername": "user1",
    "dataelementname": "Alphanum",
    "bulk": {
      "id": "1",
      "data": [
        {
          "content": <Data encoded in base64>
        }
      ]
    }
  }
}

Example 4 - reprotect

{
  "reprotect": {
    "policyusername": "user1",
    "newdataelementname": "deName",
    "olddataelementname": "Alphanum",
    "bulk": {
      "id": "1",
      "data": [
        {
          "content": <Data encoded in base64>
        }
      ]
    }
  }
}

Response

Example:

{"protect":{"bulk":{"returntype":"success","data":[{"returntype":"success","message":"Data
 protection was successful.","content":"RGZBUFR4ODAzejFwNjQ5TWg0TEFpcFNqbA=="},{"returntype":"success",
"message":"Data protection was successful.","content":"aHNnVVB5QWFDYw=="}]}}}

1.4.7 - HTTP Status Codes

HTTP Status Codes

The following table explains the different HTTP Status Codes with their corresponding response.

{"results":["<string>","<string>"],
 "success": true, "encoding":[hex|utf8]}

{
    "error_msg": "<string>",
    "success": false
}

{"error_msg": "", "success": false }

1.4.8 - SSL Certificates

SSL Certificates

By default, the Google Cloud Functions support HTTPS.

Google Cloud Function HTTPS endpoint have TLS 1.0, TLS 1.1, TLS 1.2 and TLS1.3 enabled.

For more information on HTTPS setting on Google Cloud HTTP Functions, refer to Security levels

1.4.9 -

OpenID

Verification example using openid_* configuration parameters:

1. Navigate to the cloud function main.tf configuration file, and find the section Parameters applicable when openid_enabled = true
2. Edit/replace the entries as indicated below, then save and apply the configuration:

1.4.10 -

Request

Performs a policy operation such as protect, unprotect, or reprotect.

• URI

  /v1/protect or /v1/unprotect or /v1/reprotect

• Method

  POST

• Parameters

  data: Input data to the policy operation.

  data_element: Data element to use for the policy operation.

  encoding: Optional, encoding of the data. One of: base64, hex, or utf8. Defaults to hex for binary data elements, otherwise defaults to utf8.

  external_iv: Optional, external initialization vector.

  old_data_element: (reprotect) Data element for unprotecting the input.

  old_external_iv: (reprotect) Optional, external initialization vector for the input.

  query_id: Optional, identifier for the request.

  user: User performing the operation.

• Result

  Returns the output of the policy operation.

Example 1 - without external IV

{
  "encoding": "utf8",
  "query_id": "1",
  "user": "user1",
  "data_element": "Alphanum",
  "data":[<data1>,<data2>]
}

Example 2 - with external IV

{
  "encoding": "utf8",
  "query_id": "1",
  "user": "user1",
  "data_element": "Alphanum",
  "external_iv": "abc123",
  "data":[<data1>,<data2>]
}

Example 3 - reprotect

{
  "encoding": "utf8",
  "query_id": "1",
  "user": "user1",
  "data_element": "deName",
  "old_data_element": "Alphanum",
  "data":[<data1>,<data2>]
}

Performs policy operations using different data elements for each data set.

• URI

  /v1/protect or /v1/unprotect or /v1/reprotect

• Method

  POST

• Parameters

  encoding: Optional, encoding of the data. One of: base64, hex, or utf8. Defaults to hex for binary data elements, otherwise defaults to utf8.

  query_id: Optional, prefix for the request identifier.

  user: User performing the operation.

  arguments[].data: Input data to the policy operation.

  arguments[].data_element: Data element to use for the policy operation.

  arguments[].external_iv: Optional, external initialization vector.

  arguments[].id: Optional, request identifier.

  arguments[].old_data_element: (reprotect) Data element for unprotecting the input.

  arguments[].old_external_iv: (reprotect) Optional, external initialization vector for the input.

Note: When multiple data elements are sent in the payload, the Cloud API generates an audit log per argument. The Cloud API appends the argument id, if it exists, to the query_id. For example: query_id.id:{id}. If an argument id is not provided then the index in the argument array is appended to the query_id. For example: query_id.index:{index}.

Example 4 - multiple data elements support payload

{
  "encoding": "utf8",
  "query_id": "query1234",
  "user": <policy_user>,
  "arguments": [
    {
      "id": "1",
      "external_iv": "<external iv>",
      "data_element": "<data element name>",
      "data":["<data1>","<data2>"]
    },
    {
      "data_element": <data element name>,
      "data":["<data1>","<data2>"]
    }
  ]
}

• External IV

  The External IV feature provides an additional level of security by allowing different tokenized results across protectors for the same input data and token element, depending on the External IV set on each protector. To read more about the Tokenization model with External IV, refer to the External Initialization Vector (IV) in the Protection Methods Reference guide.

1.4.11 -

Request

Performs a policy operation such as protect, unprotect, or reprotect.

• Method

  POST

• Parameters

  dataelementname: (protect/unprotect) Data element to use for the policy operation.

  externaliv: (protect/unprotect) Optional, external initialization vector.

  newdataelementname: (reprotect) Data element to use for the output.

  newexternaliv: (reprotect) Optional, external initialization vector for the output.

  olddataelementname: (reprotect) Data element to use for the input.

  oldexternaliv: (reprotect) Optional, external initialization vector for the input.

  policyusername: User performing the operation.

  bulk.id: Optional, identifier for the request.

  bulk.data[].content: Input data to the policy operation.

• Result

  Returns the output of the policy operation.

Example 1 - protect without external IV

{
  "protect": {
    "policyusername": "user1",
    "dataelementname": "Alphanum",
    "bulk": {
      "id": "1",
      "data": [
        {
          "content": <Data encoded in base64>
        }
      ]
    }
  }
}

Example 2 - protect with external IV

{
  "protect": {
    "policyusername": "user1",
    "dataelementname": "Alphanum",
    "externaliv": "abc123",
    "bulk": {
      "id": "1",
      "data": [
        {
          "content": <Data encoded in base64>
        }
      ]
    }
  }
}

Example 3 - unprotect

{
  "unprotect": {
    "policyusername": "user1",
    "dataelementname": "Alphanum",
    "bulk": {
      "id": "1",
      "data": [
        {
          "content": <Data encoded in base64>
        }
      ]
    }
  }
}

Example 4 - reprotect

{
  "reprotect": {
    "policyusername": "user1",
    "newdataelementname": "deName",
    "olddataelementname": "Alphanum",
    "bulk": {
      "id": "1",
      "data": [
        {
          "content": <Data encoded in base64>
        }
      ]
    }
  }
}

1.4.12 -

Response

responsePayloadV1:
type: object
  properties:
    success:
      type: bool
    error_msg:
      type: string
      description: When success is false, error_msg is included
    results:
      type: array
      items:
        type: string

Example success:

{
  "encoding": "utf8",
  "results":["str1","str2"],
  "success": true
}

If the request was successful, the success flag will always be true.

Example failure:

{
  "error_msg": "token expired",
  "success": false
}

If the request fails, the success flag will always be false.

Multi Data Elements Support Payload

responsePayloadV2:
type: object
  properties:
    success:
      type: boolean
    results:
      type: array
        items:
          type: object
          properties:
            success:
              type: bool
            error_msg:
              type: string
              description: When success is false, error_msg is included
            id:
              type: string
              description: When id is sent in the request payload, id is included in the response
            results:
              type: array
              items:
                type: string

Example success:

{
  "encoding": "utf8",
  "results":[
    {
      "encoding": "utf8",
      "results":["str1","str2"],
      "success": true
    },
    {
      "encoding": "utf8",
      "results":["str1","str2"],
      "success": true
    }
  ],
  "success": true
}

If the all the subrequests were successful, the success flag will be true.

Example failure:

{
  "results": [
    {
      "error_msg":
      "Protect failed. Data element not found. Refer to audit log for details",
      "success": false
    },
    {
      "encoding": "utf8",
      "results":["str1","str2"],
      "success": true
    }
  ],
  "success": false
}

It is possible to have a mix of successful and unsuccessful results. In this case, the global success flag will be false.

1.4.13 -

Response

Example:

{"protect":{"bulk":{"returntype":"success","data":[{"returntype":"success","message":"Data
 protection was successful.","content":"RGZBUFR4ODAzejFwNjQ5TWg0TEFpcFNqbA=="},{"returntype":"success",
"message":"Data protection was successful.","content":"aHNnVVB5QWFDYw=="}]}}}

1.4.14 -

Secret

Stored secret verification example using jwt_verify and jwt_secret_base64 configurations:

1. Navigate to the cloud function main.tf configuration file, and find the section Parameters applicable when authorization = jwt
2. Edit/replace the entries as indicated below, then save and apply the configuration:

-----BEGIN PUBLIC KEY-----
MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQC4fkg/JYyN3Skr6RYLiAd/Yhl0
2TE3/HzHSNPnCaRdUakGp9og7oXBMcoadFDjnoSq1sz+gUHnpoO7s2fwkD5Q4OnC
BGD3oKP2A4PlOOWD2B2cVmMqX/vf1nAA/343496jsbfgkh1Q7LTzR0IXfdii0o1U
CbvrVCuaBoyiv4TxWQIDAQAB
-----END PUBLIC KEY-----

LS0tLS1CRUdJTiBQVUJMSUMgS0VZLS0tL
S0KTUlHZk1BMEdDU3FHU0liM0RRRUJBUV
VBQTRHTkFEQ0JpUUtCZ1FDNGZrZy9KWXl
OM1NrcjZSWUxpQWQvWWhsMAoyVEUzL0h6
SFNOUG5DYVJkVWFrR3A5b2c3b1hCTWNvY
WRGRGpub1NxMXN6K2dVSG5wb083czJmd2
tENVE0T25DCkJHRDNvS1AyQTRQbE9PV0Q
yQjJjVm1NcVgvdmYxbkFBLzM0MzQ5Nmpz
YmZna2gxUTdMVHpSMElYZmRpaTBvMVUKQ
2J2clZDdWFCb3lpdjRUeFdRSURBUUFCCi
0tLS0tRU5EIFBVQkxJQyBLRVktLS0tLQ==

1.5 - Performance

1.5.1 - Performance Considerations

Performance Considerations

The following factors may affect performance benchmarks:

• Cold startup: Cloud Function spends additional time on the initial invocation to decrypt and load the policy into memory. This time can vary depending on the policy size. Once the Function is initialized, subsequent “warm executions” should process quickly.
• Size of policy: The size of the policy impacts cold start performance. Larger policies take more time to initialize.
• Cloud Function memory: GCP provides more virtual cores based on the memory configuration. The initial configuration of 2048 MB provides a good tradeoff between performance and cost with the benchmarked policy. Memory can be increased to optimize for your individual cases.
• Number of security operations (protect or unprotect).
• Cloud Function max instances and concurrency quota: The instance limit affects how functions are scaled. By default the limit is not set to allow handling any traffic pattern. The instance limit can be set to prevent abnormally high request levels. Cloud Functions are also subject to maximum quota for concurrent invocations and request rate.
• Size of data element: Operations on larger text consume time.

1.5.2 - Log Forwarder Performance

Log Forwarder Performance

Log forwarder architecture is optimized to minimize the amount of connections and reduce the overall network bandwidth required to send audit logs to ESA. This is achieved with batching and aggregation taking place on two levels. The first level is in protector function instances, where audit logs from consecutive requests to an instance are batched and aggregated. The second level of batching and aggregation takes place in the log forwarder function before audit logs are forwarded to ESA. This section shows how to configure the deployment to accommodate different patterns of anticipated audit log stream. It also shows how to monitor deployment resources to detect problems before audit records are lost.

• Protector Function Terraform configuration:

  • audit_log_flush_interval: Determines the minimum amount of time audit logs are aggregated for before they are sent to Pub/Sub topic. Default value is 30 seconds. Changing flush interval may affect the level of aggregation and it will affect the backlog of audit logs buffered in the function. The protector function features multithreaded processing which means that multiple requests can be handled at the same time, which in turn can contribute to large backlog of audit logs waiting to be sent to Pub/Sub. The protector function is hosted on Cloud Run containerized environment where each instance of the function is shut down after specific amount of time when there is no more requests to be handled. If the flush interval is too long, the function might be shut down before all of the audit log backlog is send to Pub/Sub. This can be avoided by lowering the interval value.



• Log Forwarder Function Terraform configuration

  • audit_log_flush_interval: Determines the minimum amount of time audit logs are aggregated for before they are sent to ESA audit log store. Default value is 10 seconds. Changing flush interval may affect the level of aggregation and it will affect the backlog of audit logs buffered in the function. The forwarder function features multithreaded processing which means that multiple requests can be handled at the same time, which in turn can contribute to large backlog of audit logs waiting to be sent to ESA. The forwarder function is hosted on Cloud Run containerized environment where each instance of the function is shut down after specific amount of time when there is no more requests to be handled. If the flush interval is too long, the function might be shut down before all of the audit log backlog is send to ESA. This can be avoided by lowering the interval value. On the other hand if the interval is too short, forwarder function might end up sending to many requests to ESA, which in some extreme cases may result in messages being sent to dead letter queue.
  • gen2_available_cpu: Increasing the Function CPU count allows setting higher concurrency, which in turn allows processing more messages from the Pub/Sub in parallel. The high CPU count will effectively lower the number of forwarder function instances which will lower number of connections to ESA.
  • gen2_container_concurrency: See bullet point above.
  • audit_log_dead_letter_topic: Dead-letter Pub/Sub topic name. This topic will be used by Log Forwarder in case ESA is temporarily unavailable. Messages from DLQ topic can be re-processed by another instance of Log Forwarder either manually or on schedule once ESA connectivity is restored.



• Monitoring Log Forwarder Resources

  • Protector Function Logs: If protector function is unable to send logs to Pub/Sub, it will log the following message:

    Failed to send x/y audit logs to GCP Pub/Sub.


    See the description of ‘audit_log_flush_interval’ in the protector function configuration section above to learn about potential mitigation.

  • Pub/Sub DLQ Topic Metrics: Any positive value in count aggregator on ’topic/message_sizes’ metric indicates that not all audit logs are being delivered to ESA. Review whether connection to ESA is set up in Install Log Forwarder Function via Terraform Scripts

  • Log Forwarder Function Logs: If log forwarder function is unable to send logs to ESA, it will log the following message:

    [/jenkins/workspace/iaplambda_release_3.1/src/iap/logging/fluent-bit-external-sink.cpp:225] opensearch.0: Dropped records: x/y.


    See the description of ‘audit_log_flush_interval’ in the log forwarder configuration section above to learn about potential mitigation.

    Note

    When the error message above occurs, the dropped audit records will be sent to a dead-letter Pub/Sub topic for later manual or automated re-processing.

1.6 - Audit Logging

Audit Logging

Audit records and application logs stream to Google Cloud Logging. Cloud Protect uses a JSON format for audit records that is described in the following sections.

You can analyze and alert on audit records using Protegrity ESA or Google Cloud Logging. For more information about forwarding your audit records to ESA, contact Protegrity. For more information about Google Cloud Logging, refer to the Google Cloud Logging overview.

For more information about audit records, refer to the Protegrity Analytics Guide.

Audit record fields

The audit record format has been altered in version 3.1 of the protector to provide more information.

The following are sample audit messages:

Protect Success:

{
      "additional_info": {
        "description": "Data protect operation was successful.",
        "query_id": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
        "request_id": "8476a536-e9f4-11e8-9739-2dfe598c3fcd"
      },
      "cnt": 4000,
      "correlationid": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
      "logtype": "Protection",
      "level": "SUCESS",
      "origin": {
        "hostname": "localhost",
        "time_utc": 1635363966
      },
      "protection": {
        "dataelement": "deAddress",
        "operation": "Protect",
        "audit_code": 6,
        "datastore": "SAMPLE_POLICY",
        "policy_user": "test_user"
      },
      "client": {},
      "protector": {
        "family": "cp",
        "lambda_version": "3.2.10",
        "version": "3.2.0",
        "vendor": "aws.snowflake",
        "pcc_version": "3.4.0.14",
        "core_version": "1.2.1+55.g590fe.HEAD"
      },
      "signature": {
        "key_id": "95f5a194-b0a4-4351-a",
        "checksum": "B324AF7C56944D91C47847A77C0367C594C0B948E7E75654B889571BD4F60A71"
      }
    }

User permission denied:

{
      "additional_info": {
        "description": "The user does not have the appropriate permissions to perform the requested operation."
      },
      "cnt": 4000,
      "correlationid": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
      "logtype": "Protection",
      "level": "ERROR",
      "origin": {
        "hostname": "localhost",
        "time_utc": 1635363966
      },
      "protection": {
        "dataelement": "deAddress",
        "operation": "Protect",
        "audit_code": 3,
        "policy_user": "test_user"
      },
      "process": {
        "id": "1",
        "thread_id": "849348352"
      },
      "client": {},
      "protector": {
        "family": "IAP Lambda",
        "lambda_version": "3.2.10",
        "version": "3.2.0",
        "vendor": "Cloud Protect",
        "pcc_version": "3.3.0.5",
        "core_version": "1.1.0"
      },
      "signature": {
        "key_id": "95f5a194-b0a4-4351-a",
        "checksum": "A216797C56944D91C47847A77C0367C594C0B948E7E75654B889571BD4F60A71"
      }
    }

Data element not found:

{
      "additional_info": {
        "description": "The data element could not be found in the policy in shared memory."
      },
      "cnt": 4000,
      "correlationid": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
      "logtype": "Protection",
      "level": "ERROR",
      "origin": {
        "hostname": "localhost",
        "time_utc": 1635363966
      },
      "protection": {
        "dataelement": "deAddress",
        "operation": "Protect",
        "audit_code": 2,
        "policy_user": "test_user"
      },
      "process": {
        "id": "1",
        "thread_id": "849348352"
      },
      "client": {},
      "protector": {
        "family": "IAP Lambda",
        "lambda_version": "3.2.10",
        "version": "3.2.0",
        "vendor": "Cloud Protect",
        "pcc_version": "3.3.0.5",
        "core_version": "1.1.0"
      },
      "signature": {
        "key_id": "95f5a194-b0a4-4351-a",
        "checksum": "AF09217C56944D91C47847A77C0367C594C0B948E7E75654B889571BD4F60A71"
      }
    }

Example Audit Records

The following are sample audit messages:

Protect Success:

{
      "additional_info": {
        "description": "Data protect operation was successful.",
        "query_id": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
        "request_id": "8476a536-e9f4-11e8-9739-2dfe598c3fcd"
      },
      "cnt": 4000,
      "correlationid": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
      "logtype": "Protection",
      "level": "SUCESS",
      "origin": {
        "hostname": "localhost",
        "time_utc": 1635363966
      },
      "protection": {
        "dataelement": "deAddress",
        "operation": "Protect",
        "audit_code": 6,
        "datastore": "SAMPLE_POLICY",
        "policy_user": "test_user"
      },
      "client": {},
      "protector": {
        "family": "cp",
        "version": "3.1.0",
        "vendor": "aws.snowflake",
        "pcc_version": "3.4.0.14",
        "core_version": "1.2.1+55.g590fe.HEAD"
      },
      "signature": {
        "key_id": "95f5a194-b0a4-4351-a",
        "checksum": "B324AF7C56944D91C47847A77C0367C594C0B948E7E75654B889571BD4F60A71"
      }
    }

Reprotect Success:

{
      "additional_info": {
        "description": "Data reprotect operation was successful.",
        "query_id": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
        "request_id": "8476a536-e9f4-11e8-9739-2dfe598c3fcd"
      },
      "cnt": 4000,
      "correlationid": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
      "logtype": "Protection",
      "level": "SUCCESS",
      "origin": {
        "hostname": "localhost",
        "time_utc": 1635363966
      },
      "protection": {
        "old_dataelement": "deAddress1",
        "dataelement": "deAddress2",
        "operation": "Reprotect",
        "audit_code": 50,
        "datastore": "SAMPLE_POLICY",
        "policy_user": "test_user"
      },
      "client": {},
      "protector": {
        "family": "cp",
        "version": "3.1.0",
        "vendor": "aws.snowflake",
        "pcc_version": "3.4.0.14",
        "core_version": "1.2.1+55.g590fe.HEAD"
      },
      "signature": {
        "key_id": "95f5a194-b0a4-4351-a",
        "checksum": "B324AF7C56944D91C47847A77C0367C594C0B948E7E75654B889571BD4F60A71"
      }
    }

User permission denied:

{
      "additional_info": {
        "description": "The user does not have the appropriate permissions to perform the requested operation.",
        "query_id": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
        "request_id": "8476a536-e9f4-11e8-9739-2dfe598c3fcd"
      },
      "cnt": 4000,
      "correlationid": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
      "logtype": "Protection",
      "level": "ERROR",
      "origin": {
        "hostname": "localhost",
        "time_utc": 1635363966
      },
      "protection": {
        "dataelement": "deAddress",
        "operation": "Protect",
        "audit_code": 3,
        "datastore": "SAMPLE_POLICY",
        "policy_user": "test_user"
      },
      "client": {},
      "protector": {
        "family": "cp",
        "version": "3.1.0",
        "vendor": "aws.snowflake",
        "pcc_version": "3.4.0.14",
        "core_version": "1.2.1+55.g590fe.HEAD"
      },
      "signature": {
        "key_id": "95f5a194-b0a4-4351-a",
        "checksum": "A216797C56944D91C47847A77C0367C594C0B948E7E75654B889571BD4F60A71"
      }
    }

Data element not found:

{
      "additional_info": {
        "description": "The data element could not be found in the policy in shared memory.",
        "query_id": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
        "request_id": "8476a536-e9f4-11e8-9739-2dfe598c3fcd"
      },
      "cnt": 4000,
      "correlationid": "sf-query-id:01978dbc-0582-d7e4-0000-002a3603a20d",
      "logtype": "Protection",
      "level": "ERROR",
      "origin": {
        "hostname": "localhost",
        "time_utc": 1635363966
      },
      "protection": {
        "dataelement": "deAddress",
        "operation": "Protect",
        "audit_code": 2,
        "datastore": "SAMPLE_POLICY",
        "policy_user": "test_user"
      },
      "client": {},
      "protector": {
        "family": "cp",
        "version": "3.1.0",
        "vendor": "aws.snowflake",
        "pcc_version": "3.4.0.14",
        "core_version": "1.2.1+55.g590fe.HEAD"
      },
      "signature": {
        "key_id": "95f5a194-b0a4-4351-a",
        "checksum": "AF09217C56944D91C47847A77C0367C594C0B948E7E75654B889571BD4F60A71"
      }
    }

1.7 - No Access Behavior

No Access Behavior

The security policy maintains a No Access Operation, configured in an ESA, which determines the response for unauthorized unprotect requests.

The following table describes the result returned in the response for the various no access unprotect permissions.

1.8 - Upgrading To The Latest Version

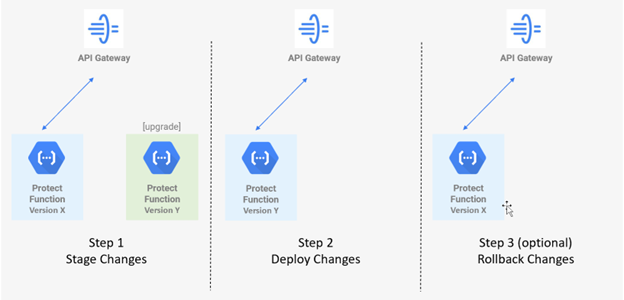

1.9 - Known Limitations

• Only protect and unprotect operations are supported. The re-protect operation is not supported.

• The Semi-structured (JSON) data type is not supported in the product.

• Cloud Function (Gen2) labels must not be updated from the Cloud Run Services console. When updating labels for a GCP Cloud Function (Gen2) through the Cloud Run Services console, GCP creates a new Cloud Run revision with the updated labels, but the underlying Cloud Function retains the old labels. Because the policy agent reads labels from the Cloud Function definition (not the Cloud Run revision), it will not detect the label change and will not trigger a policy update.



  To avoid this issue, always update labels using one of the following methods:

  • Cloud Run Functions console — Navigate to Cloud Run Functions, select the function, and update labels there. This ensures both the Cloud Function and its underlying Cloud Run revision are updated consistently.
  • Terraform — Update the labels variable in your Terraform configuration and run terraform apply.
  • gcloud CLI — Use gcloud functions deploy with the updated --update-labels flag.

  If labels were already updated incorrectly through the Cloud Run Services console, redeploy the function using one of the methods above to synchronize the labels and trigger a policy update.

1.10 - Appendices

1.10.1 - Integrating Cloud Protect with PPC (Protegrity Provisioned Cluster)

Key Differences: PPC vs ESA

Prerequisites

• Access to PPC and required credentials.
• Tools: curl, kubectl installed.

Policy Agent Setup with PPC

Follow these instructions as a guide for understanding specific inputs for Policy Agent integrating with PPC:

1. Obtain the Datastore Key Fingerprint

   To retrieve the fingerprint for your Policy Agent:

   1. Retrieve public key from the Cloud Provider Key Management service for the policy encryption key created in pre-configuration:

      • AWS
      • Azure
      • GCP
      1. Navigate to the Key Management Service in AWS console and open Customer Managed Keys
      2. Select the desired key
      3. Select the Public Key tab
      4. Select Download

      1. Navigate to the Key Vault in Azure console and open Objects>Keys
      2. Select the desired key
      3. Select the key indicated as CURRENT VERSION
      4. Select Download public key

      1. Navigate to Key Management in GCP console
      2. Select the desired key and open the Versions tab
      3. Select Get public key from the Actions column menu
      4. Select Download

   2. Escape the new line characters in the downloaded public key for use in the next step - for example:

      awk 'NF {printf "%s\\n",$0}' "<public_key_file>" > "new-line-escaped-public-key.pem"
      cat new-line-escaped-public-key.pem


   3. Export key fingerprint using the PPC API as indicated in the curl example below:

      curl -k -H "Authorization: Bearer ${TOKEN}" -X POST https://${HOST}/pty/v2/pim/datastores/1/export/keys  -H "Content-Type: application/json" --data '{
        "algorithm": "RSA-OAEP-256",
        "description": "example-key-from-key-management",
        "pem": "<value of new-line-escaped-public-key>"
      }'


      Sample Output:

      {"uid":"1","algorithm":"RSA-OAEP-256","fingerprint":"4c:46:d8:05:35:2e:eb:39:4d:39:8e:6f:28:c3:ab:d3:bc:9e:7a:cb:95:cb:b1:8e:b5:90:21:0f:d3:2c:0b:27","description":"example-key-from-kms"}


      Note

      Alternatively, set using the PPC CLI utility. See the export key example in Create Datastores Key

   4. Record the value for fingerprint and configure the Policy Agent:

      • AWS
      • Azure
      • GCP

      Set the environment variable PTY_DATASTORE_KEY in the Policy Agent Lambda function to the fingerprint value.

      Set the environment variable PTY_DATASTORE_KEY in the Policy Agent Function App to the fingerprint value.

      Set the variable in Policy Agent main.tf pty_datastore_key to the fingerprint value and apply the changes.

2. Retrieve the PPC CA Certificate

   To obtain the CA certificate from PPC:

   kubectl -n api-gateway get secret ingress-certificate-secret -o jsonpath='{.data.ca\.crt}' | base64 -d > CA.pem


   Use the ProtegrityCA.pem that was returned as described in Policy Agent Installation.

3. Configure the PPC Address

   Use the PPC address in place of the ESA IP address wherever required in your configuration.

   Note

   Use FQDN as described in the PPC Rest API documentation

Log Forwarder Setup with PPC

• The Log Forwarder will proceed without certificates and will print a warning if PTY_ESA_CA_SERVER_CERT is not provided.
• No additional certificate or CA configuration is needed for PPC.

1.10.2 - Protection Methods

Protection Methods

For more information about the protection methods supported by Protegrity, refer to the Protection Methods Reference.

1.10.3 - Configuring Regular Expression to Extract Policy Username

Configuring Regular Expression to Extract Policy Username

Cloud Protect Cloud Function exposes USERNAME_REGEX configuration to allow extraction of policy username from user in the request.

• USERNAME_REGEX Cloud Function Environment configuration

  The USERNAME_REGEX environment variable can be set to contain regular expression with one capturing group. This group is used to extract the username. Examples below show different regular expression values and the resulting policy user.

^(.*)@.*$

1.10.4 - Associating ESA Data Store With Cloud Protect Agent

Associating ESA Data Store With Cloud Protect Agent

ESA controls which policy is deployed to protector using concept of data store. A data store may contain a list of IP addresses identifying servers allowed to pull the policy associated with that specific data store. Data store may also be defined as default data store, which allows any server to pull the policy, provided it does not belong to any other data stores. Node registration occurs when the policy server (in this case the policy agent) makes a policy request to ESA, where the agent’s IP address is identified by ESA.

Policy agent function source IP address used for node registration on ESA depends on ESA hubcontroller configuration ASSIGN_DATASTORE_USING_NODE_IP and the PTY_ADDIPADDRESSHEADER configuration exposed by the agent function.

The function service uses multiple network interfaces, internal network interface with ephemeral IP range of 169.254.x.x and external network interface with IP range described in Function app outbound IP addresses section under function configuration. By default, when agent function is contacting ESA to register node for policy download, ESA uses agent function outbound IP address. This default behavior is caused by the default ESA hubcontroller configuration ASSIGN_DATASTORE_USING_NODE_IP=false and agent default configuration PTY_ADDIPADDRESSHEADER=yes.

In some cases, when there is a proxy server between the ESA and agent function, the desirable ESA configuration is ASSIGN_DATASTORE_USING_NODE_IP=true. and PTY_ADDIPADDRESSHEADER=no which will cause the ESA to use proxy server IP address.

The table below shows how the hubcontroller and agent settings will affect node IP registration on ESA.

1.10.5 - Undeliverable Audit Log Recovery

Protegrity Cloud Protect Log Forwarder installation provides a solution to recover undelivered audit logs. Reasons for undeliverable logs may include:

• Changes to network configuration in ESA or cloud provider (VPC, firewall, certificate rotation, service user credentials)
• Log Forwarder IAM Service Account permissions
• Log Forwarder Cloud Run Function configuration
• Disruption in cloud provider service

Log Forwarder Dead Letter Pub/Sub Architecture

Log Forwarder is triggered by pub/sub events generated by Protect Functions. If Log Forwarder is unable to reach ESA to deliver the logs, they are pushed to a dead letter pub/sub topic. Dead letter pub/sub topic is created when installing the Log Forwarder with the service installation script. See Install Log Forwarder Function via Terraform Scripts for dead letter topic configuration options and naming conventions.

Monitoring Undelivered Logs

Logs pushed to the dead letter pub/sub topic will be purged and no longer recoverable when specified dlq_topic_message_retention_duration has been reached. Monitoring the dead letter topic is recommended to ensure timely recovery of audit messages before they are permanently lost. Consult the GCP monitoring alerts documentation for setting up alerts based on pub/sub topic metrics.

Recovering Logs in Dead Letter Topic (Recommended)

Protegrity recommends creation of an additional Log Forwarder installation in the case where logs are not delivered to ESA, as described in Log Forwarder Dead Letter Pub/Sub Architecture.

Steps to recover audit logs using new Log Forwarder installation:

1. Create a second Log Forwarder installation (Log Forwarder 2 in the above diagram) for processing undelivered logs. Value for audit_log_dead_letter_topic in the terraform script should be set to null during installation.

2. Configure and test newly installed Log Forwarder to verify ESA connectivity. See Install Log Forwarder Function via Terraform Scripts for installation instructions.

3. Identify the dead letter pub/sub topic (DLQ 1 in the above diagram) resource name by running command

   terraform output


   for the Log Forwarder which failed to deliver logs (Log Forwarder as described in Log Forwarder Dead Letter Pub/Sub Architecture). Note the value for audit_log_dlq_topic.

4. Set audit_log_dead_letter_topic in the new Log Forwarder (Log Forwarder 2 in the above diagram) terraform installation script to the value of audit_log_dlq_topic identified in previous step. Apply the changes with terraform apply.

5. Monitor the new Log Forwarder function logs for any failures.

Recovering Logs in Dead Letter Topic (Alternative)

When the recommended method of for recovery described in Recovering Logs in Dead Letter Topic (Recommended) is not an option, you may use the existing Log Forwarder to reprocess undelivered logs.

Steps to recover audit logs using existing Log Forwarder installation:

• Fix any configuration errors causing the Log Forwarder to fail. Verify audit logs are being transmitted successfully to ESA.

• Identify the dead letter pub/sub topic (DLQ 1 in the above diagram) resource name by running command

  terraform output


  for the Log Forwarder. Note the value for audit_log_dlq_topic.

• Set audit_log_dead_letter_topic in the terraform installation script to the value of audit_log_dlq_topic identified in previous step. Apply the changes with

  terraform apply


• When audit logs have been transmitted to ESA, revert setting audit_log_dead_letter_topic to null Apply the changes with

  terraform apply


2 - BigQuery

This section describes the high-level architecture of the Protegrity BigQuery Protector on Google Cloud Platform (GCP), and the installation procedures. This section focuses on Protegrity specific aspects and should be consumed in conjunction with corresponding Google Cloud documentation.

This guide may also be used with the Protegrity Enterprise Security Administrator Guide, which explains the mechanism for managing the data security policy.

2.1 - Overview

Solution Overview

The GCP (Google Cloud Platform) BigQuery Protector is a cloud-native, serverless product for fine-grained data protection. This enables the invocation of Protegrity data protection cryptographic methods in cloud-native serverless technology. The benefits of serverless include rapid auto-scaling, performance, low administrative overhead, and reduced infrastructure costs compared to a server-based solution.

This product provides integration with Google BigQuery Remote Function. The product is designed to scale elastically and yield reliable query performance under extremely high concurrent loads. During idle use, the serverless product will scale completely down, providing significant savings in Cloud compute fees.

Protegrity utilizes a data security policy maintained by an Enterprise Security Administrator (ESA), similar to other Protegrity products. Using a simple REST API interface, authorized users can perform both de-identification (protect) and re-identification (unprotect) operations on data. A user’s individual capabilities are subject to privileges and policies defined by the Enterprise Security Administrator.

Analytics on Protected Data

Protegrity’s format and length preserving tokenization scheme make it possible to perform analytics directly on protected data. Tokens are join-preserving so protected data can be joined across datasets. Often statistical analytics and machine learning training can be performed without the need to re-identify protected data. However, a user or service account with authorized security policy privileges may re-identify subsets of data using the BigQuery Protector on GCP service.

Features

BigQuery Protector on GCP incorporates Protegrity’s patent-pending vaultless tokenization capabilities into cloud-native serverless technology. Combined with an ESA security policy, the protector provides the following features:

• Role-based access control (RBAC) to protect and unprotect (re-identify) data depending on the user privileges.
• Policy enforcement features of other Protegrity application protectors.

For more information about the available protection options, such as, data types, Tokenization or Encryption types, or length preserving and non-preserving tokens, refer to Protection Methods Reference.

2.2 - Architecture

Deployment Architecture

The Protegrity product should be deployed in the customer’s Cloud account within the same Google Cloud region as the BigQuery dataset. The product incorporates Protegrity’s vaultless tokenization engine within Google Cloud Functions. The encrypted data security policy from an ESA is deployed periodically as a static resource together with Cloud Function binaries. The policy is decrypted in memory at runtime within the Cloud Function. This architecture allows Protegrity to be highly available and scale very quickly without direct dependency on any other Protegrity services.

The product exposes a remote data protection service invoked from external User Defined Functions (UDFs), a native feature of specific Cloud databases. The UDFs can be invoked through direct SQL queries or database views. The external UDF makes parallel API calls to the serverless Protegrity Cloud function to perform protect and unprotect data operations. Each network REST request includes a micro-batch of data to process and a secure context header generated by the database with the username and a Protegrity context header with the data element type, and operation to perform. The product applies the ESA security policy including user authorization and returns a corresponding response. Security operations on sensitive data performed by protector can be audited. The product can be configured to send audit logs to ESA via optional component called Log Forwarder.

The security policy is synchronized through another serverless component called the Protegrity Policy Agent. The agent operates on a configurable schedule, fetches the policy from the ESA, performs envelope encryption using Google Key Management Service, and deploys new version of Cloud Function with updated policy. This solution can be configured to automatically provision the static policy or the final step can be performed on-demand by an administrator. There is no downtime for users during this process. Instances provisioned with the function’s previous policy version may continue running (and processing traffic) for several minutes after a deployment has finished.

The following diagram illustrates the high-level architecture.

The following diagram illustrates a reference architecture for synchronizing the security policy from the ESA to the product.

The Protegrity Policy Agent requires network access from GCP to your ESA. Most organizations install the ESA on-premise. Thus, it is recommended to install the Policy Agent in a private subnet with a Cloud VPC using a NAT Gateway to enable this communication through a corporate firewall.

The ESA is a soft appliance that must be installed on a separate server. It is used to create and manage security policies.

For more information about installing the ESA, and creating and managing policies, refer the Policy Management Section.

Audit Log Forwarding Architecture

Audit logs are by default sent to Cloud Logging. The Protegrity Product can also be configured to send audit logs to ESA. Such configuration requires deploying Log Forwarder component which is available as part of Protegrity Product deployment bundle. The diagram below shows additional resources deployed with Log Forwarder component.

The log forwarder component includes Pub/Sub service topic and the audit log forwarder function. Pub/Sub service is used to asynchronously send audit records to forwarder function, where similar audit logs are aggregated before sending to ESA. Aggregation rules are described in the Protegrity Log Forwarding guide. When the protector function is configured to send audit logs to log forwarder, audit logs are aggregated on the protector function before sending to Pub/Sub topic. Protector function exposes configuration to control the time it spends aggregating audit logs which is described in the protector function installation section.

The security of audit logs is ensured by using HTTPS connection on each link of the communication between protector function and ESA. Integrity and authenticity of audit logs is additionally checked on log forwarder which verifies individual logs signature. The signature verification is done upon arrival from Pub/Sub topic before applying aggregation. If signature cannot be verified, the log is forwarded as is to ESA where additional signature verification can be configured. Log forwarder function uses basic auth and optional certificate verification to authenticate calls to ESA. Basic auth credentials are stored securely in Secret Manager Service.

To learn more about individual audit log entry structure and purpose of audit logs, refer to Audit Logging section in this document. Installation instruction can be found in the Audit Log Forwarder Installation.

The audit log forwarding requires network access from the cloud to the ESA. Most organizations install the ESA on-premise. Therefore, it is recommended that the Log Forwarder Function is installed into a private subnet with a Cloud VPC using a NAT Gateway to enable this communication through a corporate firewall.

BigQuery Connectivity

BigQuery invokes Protegrity Cloud Function deployed as an HTTP trigger. Requests are authenticated/authorized using GCP role-based access control. BigQuery uses cloud resource connection to create unique system service account. The service account is used to authenticate/authorize requests to Protect Cloud Function. The following figure illustrates the integration architecture between BigQuery and the Protegrity Cloud Function.

BigQuery Cloud Resource Connection

The BigQuery Connection API enables users to set up a connection from BigQuery to an external data source. Creating connection requires completing an initial one-time setup to create a connection resource in BigQuery. These steps are provided in the installation.

2.3 - Installation

2.3.1 - Prerequisites

Google Cloud Services

The following table describes the Google Cloud services that may a part of your Protegrity installation.

ESA Version Requirements

The Protector and Log Forwarder functions require a security policy from a compatible ESA version.

The table below shows compatibility between different Protector and ESA versions.

Prerequisites

Required Skills and Abilities

2.3.2 - Pre-Configuration

Google Cloud Project

Identify or create a new Google Cloud Project where the Protegrity solution will be installed. It is recommended to create a new project. This provides greater security controls and avoids conflicts with other applications that might impact regional account limits. An individual with the Owner role will be required for some of the subsequent installations.

Google Project ID: ___________________

Google Project Number: ___________________

Google Cloud Region: ___________________

Key Management Service

The Google Cloud Key Management Service (KMS) provides Protegrity Serverless solution the ability to encrypt and decrypt the Protegrity Security Policy.

To create KMS Key Ring and Asymmetric Encryption Master Key:

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Navigate to Security > Key Management.

3. Select Create key ring.

4. Specify key ring name. For example, protegrity-policy-keyring.

5. select Key ring location which corresponds to the region where Protegrity solution will be installed.

   Note

   A key’s location impacts the performance of protect service.

6. Select Create.

7. Select CREATE KEY to create encryption key.

8. Specify key name. For example, protegrity-policy-key.

9. under Purpose selection, select Asymmetric Decrypt .

10. Select Key Algorithm. For example, 3072-bit RSA with OAEP Padding and SHA256 digest.

11. Select Create.

12. Once the key is created, a screen opens on the key. If the screen does not appear, click on the key name.

13. Then click on the elipses under Actions that is next to the key version.

14. Select Copy Resource Name and record the value below, e.g., projects/{project-id}/locations/region/keyRings/{key-ring}/cryptoKeys/{key-name}/cryptoKeyVersions/1

    Policy Encryption Key Version Resource Name: ___________________

Google Cloud Storage

Cloud Storage buckets are required for the Gen 2 Cloud Function sources, the Terraform backend, and the deployment of the Protegrity installation artifacts. It is recommended that you create 3 separate buckets to separate files used for different purposes. If you cannot create 3 separate buckets, you may reuse a bucket for multiple purposes.

Create the buckets:

1. Run the cloud command below to enable the Google Storage Transfer API.

   gcloud services enable storagetransfer.googleapis.com


2. Create the Gen 2 Cloud Function sources bucket. This bucket is not required if you will be deploying to Gen 1 Cloud Functions. The bucket name much match the example below. Replace the <gcp-project-number> and <region> placeholders.

   gcf-v2-sources-<gcp-project-number>-<region>


   Use the following gcloud command to obtain project number

   gcloud projects describe <gcp-project-id> --format='value(projectNumber)'


3. Create the deployment bucket or reuse an existing bucket. This bucket is used during the installation process to store the Protegrity installation artifacts.

   Deployment Bucket Name:___________________

4. Create the Terraform backend bucket or reuse an existing bucket. This bucket is used by Terraform to store information about your Cloud Protect installation, and will be used if you upgrade to a later version of Cloud Protect in the future.

   Terraform Backend Bucket Name:___________________

Cloud Functions Service Accounts

Cloud Functions use the service accounts created in this deployment. You can create Service accounts manually or use the Protegrity Terraform installation script to create one. Each service account requires specific permissions, which must be granted through IAM roles. Run the following steps to create service accounts and configure the required IAM access. If you use Terraform scripts, skip these steps.

Agent Function IAM Role

To create Agent Function IAM Role:

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Navigate to IAM & Admin > Roles, Select CREATE ROLE.

3. Specify role name and description.

4. Select ADD PERMISSIONS.

5. Select the following permissions:

   • cloudkms.cryptoKeyVersions.useToEncrypt
   • cloudkms.cryptoKeyVersions.viewPublicKey
   • secretmanager.versions.access
   • storage.objects.get
   • storage.objects.create
   • storage.objects.delete
   • storage.objects.list
   • storage.objects.update
   • storage.buckets.get
   • cloudfunctions.functions.get
   • cloudfunctions.functions.update
   • cloudfunctions.functions.sourceCodeGet
   • cloudfunctions.functions.sourceCodeSet
   • iam.serviceAccounts.actAs

6. Click Add and then Create.

Alternatively, you can run the following command from the Cloud Shell Terminal.

      gcloud iam roles create role-id \
      --project=project-id \
      --title=role-title \
      --description=role-description \
      --permissions=cloudkms.cryptoKeyVersions.useToEncrypt,\
      cloudkms.cryptoKeyVersions.viewPublicKey,\
      secretmanager.versions.access,\
      storage.objects.get,\
      storage.objects.create,\
      storage.objects.delete,\
      storage.objects.list,\
      storage.objects.update,\
      storage.buckets.get,\
      cloudfunctions.functions.get,\
      cloudfunctions.functions.update,\
      cloudfunctions.functions.sourceCodeGet,\
      cloudfunctions.functions.sourceCodeSet,\
      iam.serviceAccounts.actAs \
      --stage=GA


• role-id

  is the name of the role, such as ptyProtectRole.

• project-id

  is the name of the project, such as my-project-id.

• role-description

  is a short description of the role, such as “My custom role description”.

Sample output:

      Created role [role-id].
      description: role-description
      etag: *****************
      includedPermissions:
      - cloudfunctions.functions.get
      - cloudfunctions.functions.sourceCodeGet
      - cloudfunctions.functions.sourceCodeSet
      - cloudfunctions.functions.update
      - cloudkms.cryptoKeyVersions.useToEncrypt
      - cloudkms.cryptoKeyVersions.viewPublicKey
      - iam.serviceAccounts.actAs
      - secretmanager.versions.access
      - storage.buckets.get
      - storage.objects.create
      - storage.objects.delete
      - storage.objects.get
      - storage.objects.list
      - storage.objects.update
      name: projects/{project-id}/roles/{role-id}
      stage: GA
      title: role-title


Agent Service Account

To create Agent Service Account:

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Navigate to IAM & Admin > Service Accounts.

3. Select CREATE SERVICE ACCOUNT.

4. Specify service account name and description.

5. Select Create and Continue.

6. In the next step, click Select Role.

7. Select Custom and select the role created above .

8. Click Done.

9. Once the service account is created, the screen should open on the service account. If the screen does not appear, refresh the page with the service account list and select the service account created.

10. Record the full email. For example, service-account-name@project-id.iam.gserviceaccount.com

    Agent Function Service Account Email: ___________________

Protect Function IAM role

To create Protect Function IAM role:

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Navigate to IAM & Admin > Roles, Select CREATE ROLE.

3. Specify role name and description.

4. Select ADD PERMISSIONS.

5. Select the cloudkms.cryptoKeyVersions.useToDecrypt permission.

6. Click Add and then Create.

Protect Service Account

To create Protect Service Account:

1. Log in to Google Account and select the project where Protegrity service will be installed.

2. Navigate to IAM & Admin > Service Accounts.

3. Select CREATE SERVICE ACCOUNT.

4. Specify service account name and description.

5. Select Create and Continue.

6. In the next step, click Select Role. Then select Custom and select the role created above .

7. Click Done.

8. Once the service account is created, the screen should open on the service account. If the screen does not appear, refresh the page with the service account list and select the service account created.

9. Record the full email. For example, service-account-name@project-id.iam.gserviceaccount.com.

   Protect Function Service Account Email: ___________________

2.3.3 - Protect Service Installation

Preparation

1. Ensure that all the steps in pre-configuration are performed.

2. Log in to the Google Cloud account where Protegrity will be installed.

3. Select the project.

4. Ensure that you have access to shell command on your computer or Cloud Shell with Terraform CLI v0.14 or higher installed.

5. Ensure that the Terraform scripts provided by Protegrity are available on your local computer.

Install Protect Function via Terraform Scripts

Resources created with Terraform scripts include Protect Cloud Functions Service and other required resources depending on Terraform parameters. If you don’t specify the deployment bucket Terraform parameter, a new storage bucket will also be created. You can optionally choose to create a new service account with custom IAM role.

To install using Terraform:

1. From the command shell move to directory where you downloaded Protegrity installation bundle.

2. Unzip the bundle. Verify that the following files are available:

   • pty-protect-gcp/
   • main.tf
   • outputs.tf
   • protegrity-cloud-api-gcp-{version}.zip
   • README.md

3. Unzip the protegrity-cloud-protect-gcp-{version}.zip file. Verify that the following files are available:

   • pty-protect-gcp/
   • main.tf
   • outputs.tf
   • protegrity-cloud-protect-gcp-{version}.zip
   • README.md

4. Open the main.tf file and update Terraform backend information at the top of the file:


   terraform {
     backend "gcs" {
       bucket  = ""
       prefix  = "protegrity/terraform/pty-protect-gcp/state"
     }
   }


5. In the same main.tf file, specify the following Terraform variables: All the values were recorded in Google Cloud Project.

   Warning

   Google Cloud Function 2nd Generation currently does not support CMEK.

   Parameter	Description
   project_id	The project id recorded in the pre-configuration step
   region	The Region recorded in the pre-configuration step.
   deployment_id	Specify short name to identify deployment. This id will be added to all resources deployed with Terraform.
   deployment_bucket	Use Deployment Bucket Name recorded in pre-configuration or leave empty to create new bucket.
   deployment_bucket_location	Geographical location of deployment bucket, e.g., US, EU, ASIA.
   deployment_file_directory_path	Path to directory where deployment zip file is located. By default the deployment file should be in the same directory as this main.tf file.
   create_service_account	Leave this as false if you created service account in pre-configuration. Otherwise set to true.
   protect_function_service_account_email	Use Protect Function Service account recorded in pre-configuration or leave empty.
   min_log_level	Minimum log level for log forwarder function. One of off|severe|warning|info|config|all. Defaults to ‘severe’
   pty_log_output	Audit log output. Accepted values: “"(empty string), “pub_sub”. Note When set to “pub_sub” audit logs will be aggregated and sent to Pub/Sub topic. See Log Forwarder installation section for more details.
   audit_log_flush_interval	Time interval in seconds used to accumulate audit logs before sending to Pub/Sub topic. Default value: 30, Min value: 1, Max value: 900
   pty_pub_sub_topic	Pub/Sub topic where audit logs will be sent.
   username_regex	If username_regex is set, the effective policy user will be extracted from the user in the request. Note See gcp_username_regex_appendix to learn how to extract username from the request.
   max_instance_count	GCP Cloud Functions advanced configuration
   available_memory_mb	GCP Cloud Functions advanced configuration
   timeout_seconds	GCP Cloud Functions advanced configuration
   gen2_available_cpu	2nd Gen Cloud Function advanced configuration
   gen2_container_concurrency	2nd Gen Cloud Function advanced configuration
   upgrade_step	Set this variable when upgrading to the latest version.
   labels	You can set this map to include labels for deployed resources. Pay attention to GCP label requirements. For more information, refer to Labeling Resources. For example, only use lowercase and maximum length of 63 characters.

6. From local command line or Cloud Shell, change directory to location of the main.tf, for example: protegrity-gcp-bigquery-{version}/pty-protect-gcp/

7. Run the following command.

   terraform init


8. Terraform will download necessary providers.

9. Run the following command to verify configuration and print out deployment plan.

   terraform plan


10. Run the following command to deploy resources to your account.

    terraform apply


11. Once deployment is complete Terraform will print output variables.

12. Record the following values:

• protect_function_name: ________________________________
• protect_function_url: __________________________
• api_gateway_managed_service: _____________________________
• api_gateway_protect_service_url: ____________________
• protect_function_resource_name: _______________________

Test Protect Function Installation

Before continuing with next steps, you can verify whether Cloud Functions are installed correctly. This step is optional and can be skipped.

1. Below you can find example Linux curl command to test your function.

2. Before you can execute it, you need to obtain temporary authentication token. Run the gcloud auth login and then gcloud auth print-identity-token commands. The logged in gcloud user must have the Cloud Run Invoker Role (roles/run.invoker) role. Record the output of print identity token command.

   gcloud_auth_token: _________________

3. Replace {protect_function_url} with value recorded in previous step.

4. Replace {gcloud_auth_token} with value recorded in above step.

5. Run the following CURL command to test Function deployment.

   curl -X POST "{protect_function_url}" \
     -H 'Authorization:Bearer {gcloud_auth_token}' \
     -d '{
       "caller": "bigquery.googleapis.com/projects/my-project-id/jobs/123456",
       "requestId": "124ab1c",
       "sessionUser": "test-user@test-company.com",
       "userDefinedContext": {
         "data_element": "alpha",
         "op_type": "unprotect"
       },
       "calls": [
         [
           "UtfVk UHgcD!"
         ]
       ]
     }'


6. Verify the following output:

   {"replies":["hello world!"]}


2.3.4 - Policy Agent Installation

Policy Agent Function installation is done via Terraform scripts provided by Protegrity. Before running the template, some resources must be created manually.

ESA Server

Policy Agent function requires ESA server running and accessible from Agent Cloud Function on TCP port 8443. Make sure inbound connections on TCP:8443 are allowed for the network where ESA is hosted.

Note down ESA IP address:

ESA IP Address (EsaIpAddress): ___________________

Certificates on ESA

By default, ESA is configured with self-signed certificates, which can only be validated using self-signed CA certificate supplied in Cloud Function Environment variables configuration.

In case ESA is configured with publicly signed certificates, this section can be skipped since the Cloud Function will use public CA to validate ESA certificates.

To obtain self-signed CA certificate from ESA:

1. Log in to ESA Web UI.

2. Select Settings > Network > Manage Certificates.

3. Hover over Server Certificate and click on download icon to download the CA certificate.

4. After certificate is downloaded, open the PEM file in text editor and replace all new lines with escaped new line: \n.

   To escape new lines from command line, use one of the following commands depending on your operating system:

   Linux Bash:

   awk 'NF {printf "%s\\n",$0;}' ProtegrityCA.pem > output.txt


   Windows PowerShell:

   (Get-Content '.\ProtegrityCA.pem') -join '\n' | Set-Content 'output.txt'


5. Record the certificate content with new lines escaped.

   ESA CA Server Certificate (EsaCaCert): ___________________

   This value will be used to set pty_esa_ca_server_cert Terraform variable in installation section.

For more information about ESA certificate management refer to Certificate Management Guide in ESA documentation.

Identify or Create a new VPC

Google Cloud VPC is used to route traffic from Policy Agent Cloud Function to ESA. If your ESA is in a Google Cloud VPC, it is recommended to create a serverless VPC access and record its name:

google_vpc_access_connector_name: ___________________

If ESA is not on Google Cloud VPC, you can either create one or choose to let Terraform script to create one. The Terraform script will create the following elements:

• NAT gateway

  To connect to ESA outside the Google Cloud Network

• External IP address

  Can add it to the allowlist by the firewall in the network environment where ESA is hosted.

• Serverless VPC access

  Allows connectivity from the Cloud function to the VPC.

Creating ESA Credentials

Policy Agent Function requires ESA credentials to be provided as one of the two options:

• Option 1: Secret Manager
• Option 2: Custom Cloud Function )

Secret Manager

Secret Manager is the recommended option for storing ESA credentials.

Create ESA credentials secrets:

1. Log in to Google Account and select project where Protegrity service will be installed.

2. Go to Security > Secret Manager.

3. Select CREATE SECRET.

4. Specify the Secret Value:

   {
     "username": "{esa_username}",
     "password": "{esa_password}"
   }


5. Select Create Secret.

6. Once the secret is created, you should see the secret screen opened. If not click on the secret name to see a screen with secret versions.

7. Click on Actions, next to the secret version you just created.

8. Select Copy Resource ID and record the full secret version path, For example, projects/{project-id}/secrets/{secret name}/versions/2.

   Secret resource id: ___________________

Custom Cloud Function

If you have the skills to write code, you may provide a custom Cloud Function that returns the ESA credentials to the Policy Agent. One use case is when reading the ESA credentials from a third-party password vault.

Create the Cloud Function:

1. Create a new 2nd gen Cloud Function using any runtime.

   1. The Policy Agent does not provide an input payload.

   2. The Cloud Function must return a response according to the following schema:

      response:
        type: object
          properties:
            username: string
            password: string


      For example,

      example output: {"username": "admin", "password": "Password1234"}


   3. Sample GCP Function in Python:

      def handler(request):
          return {"username": "admin", "password": "password1234"}


      Warning

      Protegrity does not recommend hardcoding ESA password in the clear.

2. Grant the Cloud Run Invoker role to the Policy Agent function service account.

3. Grant the cloudfunctions.functions.get permission to the Policy Agent function service account role.

4. Record the Function name:

   ESA CREDENTIALS FUNCTION NAME: _______________

Install Policy Agent Function through Terraform Scripts

Agent Terraform scripts provided by Protegrity create a Cloud Function in your Google account. If you don’t specify the deployment bucket Terraform parameter, a new storage bucket will also be created. You can also create the following optional resources by specifying the corresponding parameters:

• Service account with IAM role
• VPC with NAT external IP
• VPC access connector

To install Policy Agent Function through Terraform:

1. From command shell, move to the directory where you downloaded Protegrity installation bundle.

2. Unzip the bundle, then unzip the protegrity-agent-gcp-{version}.zip. Verify that the following files are available:

   • pty-agent-gcp/
   • main.tf
   • outputs.tf
   • README.md

3. Open the main.tf file and update Terraform backend information at the top of the file:


   terraform {
     backend "gcs" {
       bucket  = ""
       prefix  = "protegrity/terraform/pty-protect-gcp/state"
     }
   }


4. Set the bucket property to Terraform Backend Bucket Name recorded in Google Cloud Storage

5. Set the prefix property with value unique to your deployment.

6. In the same main.tf file, specify the following Terraform variables.

   Parameter	Description
   project_id	The Project ID recorded in the pre-configuration step
   region	The Region recorded in the pre-configuration step, for example, us-central1.
   deployment_id	Specify short name to identify deployment. This id will be added to all resources deployed with Terraform.
   deployment_bucket	Use Deployment Bucket Name recorded in pre-configuration or leave empty to create new bucket.
   deployment_bucket_location	Geographical location of deployment bucket, e.g., US, EU, ASIA.
   deployment_file_directory_path	Path to directory where deployment zip file is located. By default the deployment file should be in the same directory as this main.tf file.
   policy_download_cron_expression	Cron expression determining how often policy agent function will run to synchronize security policy from ESA.
   create_service_account	Leave this as false if you created service account in pre-configuration. Otherwise set to true.
   agent_function_service_account_email	Use Agent Function Service account recorded in pre-configuration or leave empty.
   create_vpc	Set this to true, if you would like to create VPC with NAT, external IP and vpc access connector, otherwise leave empty. This will be ignored if google_vpc_access_connector_name is specified.
   google_vpc_access_connector_name	Specify the existing VPC access connector name you identified in earlier step, otherwise leave empty. This setting will disable create_vpc = true.
   google_vpc_access_connector_full_resource_name	Alternative configuration for VPC access connector. If this parameter is set the google_vpc_access_connector_name will be ignored. Use this parameter, if vpc connector is in different region/project that the one specified for the deployment.
   labels	You can set this map to include labels for deployed resources. Pay attention to gcp label requirements. More information in: https://cloud.google.com/compute/docs/labeling-resources. For example, only use lowercase and maximum length of 63 characters.

   All the values were recorded in Pre-Configuration and this section’s previous steps.

7. Provide Policy update Terraform variables. In the same main.tf file, you can specify configuration related to policy update. Any of these variables can be updated at any given time by running the terraform again or directly in the GCP Console. Most of the values were recorded in previous installation steps.

   Parameter	Description	Notes
   pty_esa_ip	ESA IP address or hostname	ESA Server
   pty_esa_ca_server_cert	ESA self-signed CA certificate used by policy Agent Function to ensure ESA is the trusted server.	Recorded in step Certificates on ESA In case ESA is configured with publicly signed certificates, the pty_esa_ca_server_cert configuration will be ignored.
   gcp_esa_credentials_secret_resource_id	ESA username and password (encrypted value by Google Cloud Secrets Manager). For example, projects/{project-id}/secrets/{secret name}/versions/{version}	Creating ESA Credentials
   pty_esa_credentials_function	ESA credentials GCP function resource name. For example, projects/{project-name}/locations/{region}/functions/{esa-credentials-function-name}.	Recorded in step Option 2: Custom Cloud Function ESA CREDENTIALS FUNCTION NAME. Presence of gcp_esa_credentials_secret_resource_id will cause this value to be ignored. The Policy Agent Function must have network access and IAM permissions to call the ESA Credentials function you have created in Option 2: Custom Cloud Function.
   gcp_kms_key_resource_name	The Key full resource name. For Example, projects/{project-id}/locations/region/keyRings/ {key-ring}/cryptoKeys/{key-name}/cryptoKeyVersions/1	Key Management Service
   gcp_protect_function_resource_name	List of comma separated Protect function resource names. For Example, projects/{project-id}/ locations/{region}/functions/{function-name1},projects/{project-id}/ locations/{region}/functions/{function-name2}	Use protect_function_resource_name recorded in Protect Service Installation section.
   gcp_policy_retention_storage_bucket	Deployment Bucket Name where the encrypted policy will be written.	You can use deployment bucket recorded in Google Cloud Storage section, or you can specify other existing bucket.
   gcp_policy_version_object_key	Filename of the encrypted policy stored in the Deployment Bucket Name	Default: policy.zip
   retain_policy_versions	Number of policy versions to retain as backup. (e.g. 2 will retain the latest 2 policies and remove older ones). -1 retains all.	Default: 10
   disable_deploy	This flag can be either 1 or 0. If set to 1, then the agent will not update protector function with the newest policy. Else, the policy will be saved in the cloud storage bucket and deployed to the protector function. Warning Agent deployment requires a deployed Protect or Log Forwarder Cloud Run function when disable_deploy is set	Default: 0
   log_level	Application and audit logs verbiage level	Default: INFO. Allowed values: DEBUG – the most verbose INFO, WARNING, ERROR – the least verbose
   policy_pull_timeout	Time in seconds to wait for the ESA to send the full policy	Default: 20
   pty_core_casesensitive	Specifies whether policy usernames should be case sensitive	Default: no. Allowed values: yes, no
   pty_core_emptystring	Override default behavior. Empty string response values are returned as null values. For instance, (un)protect(’’) -> null (un)protect(’’) -> ''	Default: empty. Allowed values: null, empty
   esa_connection_timeout	Time in seconds to wait for the ESA response	Default: 5s
   pty_addipaddressheader	When enabled, agent will send its source IP address in the request header. This configuration works in conjunction with ESA hubcontroller configuration ASSIGN_DATASTORE_USING_NODE_IP (default=false). See Associating ESA Data Store With Cloud Protect Agent for more information.	Default: yes. Allowed values: yes, no
   pty_datastore_key	ESA policy datastore public key fingerprint (64 char long) e.g. 123bff642f621123d845f006c6bfff27737b21299e8a2ef6380aa642e76e89e5.	Note This configuration is not applicable for ESA versions lower than 10.2. The export key is the public part of an asymmetric key pair created in a Create KMS Key. A user with Security Officer permissions adds the public key to the data store in ESA via Policy Management > Data Stores > Export Keys. The fingerprint can then be copied using the Copy Fingerprint icon next to the key. Refer to Exporting Keys to Datastore for details. Note For PPC deployments, see PPC Appendix: Policy Agent Certificate and Key Guidance for details on obtaining and using the datastore key fingerprint.
   pty_sync_datastore	Optional name of the policy datastore to sync with ESA. Refer to ESA documentation for more information on policy datastore sync.	Default: ""

8. From local command line or Cloud Shell, change directory to location of the main.tf, for example:

   protegrity-agent-gcp-{version}/pty-agent-gcp/


9. Run terraform init.

   Terraform will download necessary providers.

10. Run terraform plan to verify configuration and print out deployment plan.

11. Run terraform apply to deploy resources to your account. Once deployment is complete, Terraform will print output variables.

12. Below is the sample output from successful deployment.


            Apply complete! Resources: 1 added, 0 changed, 0 destroyed.
            Outputs:
            agent_function_service_account_email = "pty-agent-test@test.iam.gserviceaccount.com"
            deployment_bucket_name = "test-bucket"
            nat_ip = 0
            policy_agent_function_deployment_object = "pty-agent-test-1.0.1.zip"
            policy_agent_function_name = "pty-agent-test"


Test Agent Function Installation

After configuration is complete, you can test the function.

To test and run the Policy Agent Function:

1. From the Google Cloud console, go to Cloud Run Functions or Cloud Run.

2. Click on the function you just deployed: pty_agent_{deployment_id}.

3. Click Test button at the top right section of the screen.

4. Scroll down to CLI test command.

5. Copy and run the curl command to trigger the agent. Alternatively, use the option Test in Cloud Shell.

6. Wait for the function to complete.

   Note

   The Policy Agent function deploys a new version of the Cloud Protect Function with updated policy. This process may take several minutes. During this time, the previous policy version remains available until the function update is complete.

7. Navigate to the LOGS tab to view agent execution logs.

8. Alternatively, you may review the logs by navigating to Logging from your Google Console. In the Log Explorer select the All resources dropdown, then Cloud Run Revision > pty-agent-{deployment-id} and apply.

   Note

   Example logs (most recent first):


   Function execution took 23892 ms, finished with status: 'ok'
   iap.policy_deployer:INFO:Deleting object [policy_v07-26-2021_21-00-00.zip]
   iap.policy_deployer:INFO:Deleting object [policy_v07-26-2021_19-03-23.zip]
   iap.policy_deployer:INFO:Removing old function versions in [test-artifacts]. Will retain [1] versions.
   iap.policy_deployer:INFO:Updating function [projects/cloud-engineering-315519/locations/us-central1/functions/pty-protect-test] with new deployment artifact [test-artifacts/policy_v07-26-2021_21-00-01.zip] ...
   iap.imp_creator:INFO:Uploading encrypted policy data to: [test-artifacts/policy_v07-26-2021_19-03-23.zip]
   iap.imp_creator:INFO:Preparing deployment package ...
   iap_agent_gcp.cloud_functions_util:INFO:Downloading function deployment package ...
   iap.imp_creator:INFO:Encrypting policy package ...
   iap.policy_agent:INFO:Preparing new policy deployment ...
   iap.policy_agent:WARNING:Current policy deployment has no checksum_mapping metadata:
   iap.imp_creator:INFO:Checking current policy version ...
   iap.policy_agent:INFO:Current deployment package version: [policy_v07-26-2021_18-51-43.zip].
   iap.policy_agent:INFO:Getting current policy metadata ...
   iap.imp_creator:INFO:Policy downloaded successfully ...
   iap.imp_creator:INFO:PepServer started ...
   iap.imp_creator:INFO:Starting PepServer ...
   iap.imp_creator:INFO:PepServer configured successfully
   iap.imp_creator:INFO:Downloading certificates from ESA ...
   iap.imp_creator:INFO:Configuring PepServer ...
   iap.policy_agent:INFO:Starting policy agent ...
   iap.policy_agent:INFO:Using Secret Manager [GCP_ESA_CREDENTIALS_SECRET_RESOURCE_ID] to retreive ESA credentials.
   iap.policy_agent:INFO:PTY_CORE_CASESENSITIVE [no]
   iap.policy_agent:INFO:PTY_CORE_EMPTYSTRING [empty]
   iap.policy_agent:INFO:RETAIN_POLICY_VERSIONS [1]
   iap.policy_agent:INFO:GCP_PROTECT_FUNCTION_RESOURCE_NAME [projects/test/locations/us-central1/functions/pty-protect-test]
   iap.policy_agent:INFO:GCP_POLICY_VERSION_OBJECT_KEY [policy.zip]
   iap.policy_agent:INFO:GCP_POLICY_RETENTION_STORAGE_BUCKET [test-artifacts]
   iap.policy_agent:INFO:GCP_KMS_KEY_RESOURCE_NAME [projects/test/locations/us-central1/keyRings/test-key-ring/cryptoKeys/test-protect-asymmetric/cryptoKeyVersions/1]
   iap.policy_agent:INFO:GCP_ESA_CREDENTIALS_SECRET_RESOURCE_ID [projects/1234/secrets/ESA_ADMIN_CREDENTIALS/versions/2]
   iap.policy_agent:INFO:PTY_ESA_IP [54.236.107.39]
   iap.policy_agent:INFO:POLICY_PULL_TIMEOUT [20]
   iap.policy_agent:INFO:DISABLE_DEPLOY [0]
   Function execution started
