Tokenization Types

• 1: Numeric (0-9)
• 2: Integer (0-9)
• 3: Credit Card
• 4: Alpha (A-Z)
• 5: Upper-Case Alpha (A-Z)
• 6: Alpha-Numeric (0-9, a-z, A-Z)
• 7: Upper-Case Alpha-Numeric (0-9, A-Z)
• 8: Lower ASCII
• 9: Datetime (YYYY-MM-DD HH:MM:SS)
• 10: Decimal

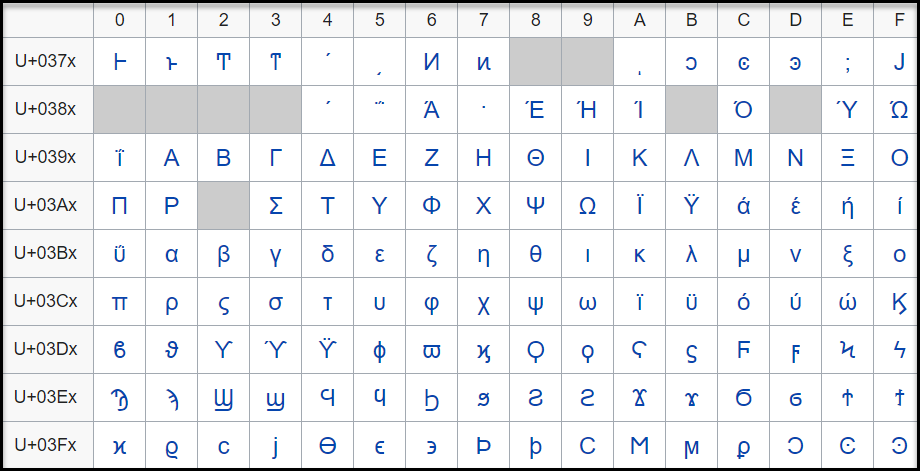

• 11: Unicode Gen2
• 12: Binary
• 13: Email
• 14: Printable
• 15: Date (YYYY-MM-DD, DD/MM/YYYY, MM.DD.YYYY)
• 16: Unicode
• 17: Unicode Base64

1 - Numeric (0-9)

The Numeric token type tokenizes digits from 0 to 9.

Table: Numeric Tokenization Type properties

The following table lists the examples of numeric tokenization values.

Table: Examples of Numeric tokenization values

Numeric Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Numeric token.

Table: Supported input data types for Application protectors with Numeric token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protector only supports bytes converted from the string data type. If any other data type is directly converted to bytes and passed as input to the Application Protectors APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Numeric token.

Table: Supported input data types for Big Data protectors with Numeric token

^*1 – If the input and output types of the API are BYTE[], then the customer application should convert the input to and output from the byte array, before calling the API.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

^*3 – If you are using the Char tokenization UDFs in Hive, then ensure that the data elements have length preservation selected. In Char tokenization UDFs, using data elements without length preservation selected, is not supported.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Numeric token.

Table: Supported input data types for Data Warehouse protectors with Numeric token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Numeric token.

Table: Supported input data types for Database protectors with Numeric token

Note: For numeric data elements where length preservation is not enabled, the maximum supported length is 3,842 characters. Data up to this length can be tokenized and de-tokenized without errors.

For more information about Database protectors, refer to Database Protectors

2 - Integer (0-9)

The Integer token type tokenizes 2, 4, or 8 byte size integers.

Table: Integer Tokenization Type properties

The following table shows examples of the way in which a value will be tokenized with the Integer token.

Table: Examples of Integer tokenization values

The pty.ins_integer UDF in the Oracle, Teradata, and Impala Protectors, supports input data length of 4 bytes only. For 2 bytes, the following error is returned: Invalid input size.

Integer Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Integer token.

Table: Supported input data types for Application protectors with Integer token

If the user passes a 4-byte integer with values ranging from -2,147,483,648 to +2,147,483,647, the data element for the protect, unprotect, or reprotect APIs should be an 4-byte integer token type. However, if the user uses 2-byte integer token type, the data protection operation will not be successful. For a Bulk call using the protect, unprotect, and reprotect APIs, the error code, 44, appears. For a single call using the protect, unprotect, and reprotect APIs, an exception will be thrown and the error message, 44, Content of input data is not valid appears.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Integer token.

Table: Supported input data types for Big Data protectors with Integer token

^*1 – If the input and output types of the API are BYTE[], then the customer application should convert the input to and output from the byte array, before calling the API.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Bytes as input that are not generated from string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes should be passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Integer token.

Table: Supported input data types for Data Warehouse protectors with Integer token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Integer token.

Table: Supported input data types for Database protectors with Integer token

For more information about Database protectors, refer to Database Protectors

3 - Credit Card

The Credit Card token type helps maintain transparency. It provides ways to clearly distinguish a token from the real value which is a recommendation of the PCI DSS. The Credit Card token type supports only numeric input (no separators are allowed as input).

Table: Credit Card Tokenization properties

The credit card number real value is distinguished from the tokenized value based on the token value validation properties.

Table: Specific Properties of the Credit Card Token Type

You can create a Credit Card token element and select no validation property for it. If the Credit Card token is involved, it will be handled similar to a Numeric token. However, additional checks will be applied to the input based on the properties detailed in the Credit Card token general properties column in the table above.

To enable the Credit Card token properties, such as, Invalid LUHN checksum and Invalid Card Type, with the SLT Tokenizers, refer to Credit Card Properties with SLT Tokenizers.

Invalid Luhn Checksum

The purpose of the Luhn checksum is to detect incorrectly entered card details. If you enable Invalid Luhn Checksum token validation, then you must use valid credit cards otherwise tokenization will be denied for an invalid credit card number.

A valid credit card has a valid Luhn checksum. Upon tokenization, the tokenized value will have an invalid Luhn checksum. Here is an example of the tokenized credit card with the invalid Luhn digit.

Table: Credit Card Number with Luhn Checksum Examples

Invalid Card Type

An invalid credit card indicates an issue with the credit card details. An invalid card type will result in token values not starting with the digits that real credit card numbers begin with. The first digit in a real credit card number is the Major Industry Identifier. Thus, digits 3,4,5,6, and 0 can be the first digits of the real credit card number, which are then substituted during tokenization.

Table: Real Credit Card Values with Tokenized Values

Here is an example of the tokenized credit card with the invalid card type.

Table: Credit Card Number with Invalid Card Type Examples

Alphabetic Indicator

The alphabetic indicator replaces the tokenized value with an alphabet. If you enable Alphabetic Indicator validation, then the resulting token value will have one alphabetic character.

You will need to choose the position of the alphabetic character before tokenizing a credit card number otherwise the resulting token will have no alphabetic indicator.

The alphabetic indicator will substitute the tokenized value according to the following rule:

Table: Alphabetic Indicator with Tokenized Digits

In the following table, the Visa Card Number “4067604564321454” is tokenized. A tokenized value, represented by “7594107411315001”, is substituted with an alphabetic character in a selected position.

Table: Examples of Credit Card Tokenization with Alphabetic Indicator

Credit Card Properties with SLT Tokenizers

The Credit Card Properties with SLT Tokenizers explains the minimum data length required for tokenization. This occurs when the Credit Card token properties is used in combination with the SLT Tokenizers.

If you enable Credit Card token properties for tokenization, such as Invalid LUHN checksum and Invalid Card Type, you need to select an appropriate SLT Tokenizer. This is required to ensure the minimum data length is available for successful tokenization.

The following table represents the minimum data length required for tokenization as per the usage of Credit Card token properties with the SLT Tokenizers.

Table: Minimum Data Length - Credit Card Token Properties with SLT Tokenizers

Credit Card Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Credit Card token.

Table: Supported input data types for Application protectors with Credit Card token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protector only supports bytes converted from the string data type. If any other data type is directly converted to bytes and passed as input to the Application Protectors APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Credit Card token.

Table: Supported input data types for Big Data protectors with Credit Card token

^*1 – If the input and output types of the API are BYTE[], then the customer application should convert the input to and output from the byte array, before calling the API.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Bytes as input that are not generated from string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes should be passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Credit Card token.

Table: Supported input data types for Data Warehouse protectors with Credit Card token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Credit card token.

Table: Supported input data types for Database protectors with Credit Card token

For more information about Database protectors, refer to Database Protectors

4 - Alpha (A-Z)

The Alpha token type tokenizes both uppercase and lowercase letters.

Table: Alpha Tokenization Type properties

The following table shows examples of the way in which a value will be tokenized with the Alpha token.

Table: Examples of Numeric tokenization values

Alpha Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Alpha token.

Note: For both SLT_1_3 and SLT_2_3, the maximum length of the protected data is 4096 bytes. This occurs for the Alpha token element for Application Protector with no length preservation.

Table: Supported input data types for Application protectors with Alpha token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protector only supports bytes converted from the string data type. If any other data type is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Alpha token.

Table: Supported input data types for Big Data protectors with Alpha token

^*1 – If the input and output types of the API are BYTE[], then the customer application should convert the input to and output from the byte array, before calling the API.

^*2– The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data that is not converted to bytes from string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

^*3 – If you are using the Char tokenization UDFs in Hive, then ensure that the data elements have length preservation selected. In Char tokenization UDFs, using data elements without length preservation selected, is not supported.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Alpha token.

Table: Supported input data types for Data Warehouse protectors with Alpha token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Alpha token.

Table: Supported input data types for Database protectors with Alpha token

For more information about Database protectors, refer to Database Protectors

5 - Upper-Case Alpha (A-Z)

The Upper-Case Alpha token type tokenizes all alphabetic symbols as uppercase. After de-tokenization, all alphabetic symbols are returned as uppercase. This means that initial and detokenized values would not match if the input contains lowercase letters.

Table: Upper-Case Alpha Tokenization Type properties

The following table shows examples of the way in which a value will be tokenized with the Upper-case Alpha token.

Table: Examples of Upper Case Alpha tokenization values

Upper-case Alpha Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Upper-case Alpha token.

Table: Supported input data types for Application protectors with Upper-case Alpha token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Upper-Case Alpha token.

Table: Supported input data types for Big Data protectors with Upper-Case Alpha token

^*1 – If the input and output types of the API are BYTE[], then the customer application should convert the input to and output from the byte array, before calling the API.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

^*3 – If you are using the Char tokenization UDFs in Hive, then ensure that the data elements have length preservation selected. In Char tokenization UDFs, using data elements without length preservation selected, is not supported.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Upper-case Alpha token.

Table: Supported input data types for Data Warehouse protectors with Upper-case Alpha token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Alpha token.

Table: Supported input data types for Database protectors with Alpha token

For more information about Database protectors, refer to Database Protectors

6 - Alpha-Numeric (0-9, a-z, A-Z)

The Alpha-numeric token type tokenizes all alphabetic symbols, including lowercase and uppercase letters. It also tokenizes digits from 0 to 9.

Table: Alpha-Numeric Tokenization Type properties

The following table shows examples of the way in which a value will be tokenized with the Alpha-Numeric token.

Table: Examples of Tokenization for Alpha-Numeric Values

Alpha-Numeric Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Alpha-Numeric token.

Table: Supported input data types for Application protectors with Alpha-Numeric token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Alpha-Numeric token.

Table: Supported input data types for Big Data protectors with Alpha-Numeric token

^*1 – If the input and output types of the API are BYTE[], then the customer application should convert the input to and output from the byte array, before calling the API.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

^*3 – If you are using the Char tokenization UDFs in Hive, then ensure that the data elements have length preservation selected. In Char tokenization UDFs, using data elements without length preservation selected, is not supported.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Alpha-Numeric token.

Table: Supported input data types for Data Warehouse protectors with Alpha-Numeric token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Alpha-Numeric token.

Table: Supported input data types for Database protectors with Alpha-Numeric token

For more information about Database protectors, refer to Database Protectors

7 - Upper-Case Alpha-Numeric (0-9, A-Z)

The Upper-Case Alpha-Numeric token type tokenizes uppercase letters A through Z and digits 0 to 9. It tokenizes all alphabetic symbols as uppercase. After de-tokenization, all alphabetic symbols are returned as uppercase. This means that initial and detokenized values would not match if the input contains lowercase letters.

Table: Upper-Case Alpha-Numeric Tokenization Type properties

The following table shows examples of the way in which a value will be tokenized with the Upper-Case Alpha-Numeric token.

Table: Examples of Tokenization for Upper-Case Alpha-Numeric Values

Upper-Case Alpha-Numeric Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Upper-Case Alpha-Numeric token.

Table: Supported input data types for Application protectors with Upper-Case Alpha-Numeric token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Upper-Case Alpha-Numeric token.

Table: Supported input data types for Big Data protectors with Upper-Case Alpha-Numeric token

^*1 – If the input and output types of the API are BYTE[], then the customer application should convert the input to and output from the byte array, before calling the API.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

^*3 – If you are using the Char tokenization UDFs in Hive, then ensure that the data elements have length preservation selected. In Char tokenization UDFs, using data elements without length preservation selected, is not supported.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Upper-Case Alpha-Numeric token.

Table: Supported input data types for Data Warehouse protectors with Upper-Case Alpha-Numeric token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Alpha Numeric token.

Table: Supported input data types for Database protectors with Alpha Numeric token

For more information about Database protectors, refer to Database Protectors

8 - Lower ASCII

The Lower ASCII token type is used to tokenize printable ASCII characters.

Table: Lower ASCII Tokenization Type properties

The following table shows examples of the way in which a value will be tokenized with the Lower ASCII token.

Table: Examples of Tokenization for Lower ASCII Values

Lower ASCII Tokenization Properties for different protectors

Lower ASCII tokenization should not be used with JSON or XML UDFs.

Application Protector

The following table shows supported input data types for Application protectors with the Lower ASCII token.

Table: Supported input data types for Application protectors with Lower ASCII token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Lower ASCII token.

Table: Supported input data types for Big Data protectors with Lower ASCII token

^*1 – If the input and output types of the API are BYTE[], then the customer application should convert the input to and output from the byte array, before calling the API.

^*2 – Ensure that you use the Horizontal tab “\t” as the field or column delimiter when loading data that is tokenized using Lower ASCII tokens for Hive, Pig, Impala, and Trino.

^*3 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Lower ASCII token.

Table: Supported input data types for Data Warehouse protectors with Lower ASCII token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Lower ASCII token.

Table: Supported input data types for Database protectors with Lower ASCII token

For more information about Database protectors, refer to Database Protectors

9 - Datetime (YYYY-MM-DD HH:MM:SS)

The Datetime token type was introduced in response to requirements to allow specific date parts to remain in the clear and for date tokens to be distinguishable from real dates. The Datetime token type allows time to be tokenized (HH:MM:SS) in fractions of a second, including milliseconds (MMM), microseconds (mmmmmm), and nanoseconds (nnnnnnnnn).

Extended DateTime Tokenization with Timezone Offsets

The ISO 8601 DateTime format with timezone offsets are supported only in Application Protector .NET 10.0.1. Other protectors do not support ISO 8601 formatted DateTime inputs.

The extended DateTime tokenization now supports ISO 8601 formatted dates including timezone offsets. For example, +05:30. The tokenizer applies protection only to the date and time element up to seconds. The fractional seconds and additional identifiers remains unchanged. The Delimiters are preserved.

Supported Format:

• Examples of valid input:
  • YYYY-MM-DD HH:MM:SS+hh:mm
  • YYYY.MM.DD HH:MM:SS+hh:mm
• Maximum length: 37 bytes
  For example, the longest supported format is -

  2019-11-07 13:37:00:000000000+05:30


Table: Datetime Tokenization Type properties

Note:
^*1 - Limitation. For more information, refer to Extended DateTime Tokenization with Timezone Offsets.

The Tokenize Time property defines whether the time part (HH:MM:SS) will be tokenized. If Tokenize Time is set to “No”, the time part will be treated as a delimiter. It will be added to the date after tokenization.

The Distinguishable Date property defines whether the tokenized values will be outside of the normal date range.

If the Distinguishable Date option is enabled, then all tokenized dates will be in the range from year 5596-09-06 to 8334-08-03. The tokenized value will become recognizable. As an example, tokenizing “2012-04-25” can result in “6457-07-12”, which is distinguishable.

If the Distinguishable Date option is disabled, then the tokenized dates will be in the range from year 0600-01-01 to 3337-11-27. As an example, tokenizing “2012-04-25” will result in “1856-12-03”, which is non-distinguishable.

The Date in Clear property defines whether Month or Year will be left in the clear in the tokenized value.

Note: You cannot use enabled Distinguishable Date and select month or year to be left in the clear at the same time.

The following points are applicable when you tokenize the Dates with Year as 3337 by setting the Year part to be in clear:

• The tokenized Date value can be outside of the accepted Date range.
• The tokenized Date value can be de-tokenized to obtain the original Date value.

For example, if the Date 3337-11-27 is tokenized by setting the Year part 3337 in clear, then the resultant tokenized value 3337-12-15 is outside of the accepted Date range. The detokenization of this tokenized value returns the original Date 3337-11-27.

The following table shows examples of the way in which a value will be tokenized with the Datetime token.

Table: Examples of Tokenization for DateTime Values

Note:
^*1 - Limitation. For more information, refer to Extended DateTime Tokenization with Timezone Offsets.

Datetime Tokenization for Cutover Dates of the Proleptic Gregorian Calendar
The data systems, such as, Oracle or Java-based systems, do not accept the cutover dates of the Proleptic Gregorian Calendar. The cutover dates of the Proleptic Gregorian Calendar fall in the interval 1582-10-05 to 1582-10-14. These dates are converted to 1582-10-15. When using Oracle, conversion occurs by adding ten days to the source date. Due to this conversion, data loss occurs as the system is not capable to return the actual date value after the de-tokenization.

Note: The tokenization of the Date values in the cutover Date range of the Proleptic Gregorian Calendar results in an “Invalid Input” error.

The following points are applicable when the Distinguishable Date option is disabled:

• If the Distinguishable Date option is disabled, then the tokenized dates are in the range 0600-01-01 to 3337-11-27, which also includes the cutover date range. During tokenization, an internal validation is performed to check whether the value is tokenized to the cutover date. If it is a cutover date, then the Year part (1582) of the tokenized value is converted to 3338 and then returned.
• During de-tokenization, an internal check is performed to validate whether the Year is 3338. If the Year is 3338, then it is internally converted to 1582.

The following points are applicable when you tokenize the dates from the Year 1582 by setting the Year part to be in clear:

• The tokenized value can result in the cutover Date range. In such a scenario, the Year part of the tokenized Date value is converted to 3338.
• During de-tokenization, the Year part of the Date value is converted to 1582 to obtain the original date value.

For example, if the date 1582.04.30 12:12:12 is tokenized by setting the Year part in clear and the resultant tokenized value falls in the cutover Date range, then the Year part is converted to 3338 resulting in a tokenized value as 3338.10.10 12:12:12. The de-tokenization of this tokenized value returns the original Date 1582.04.30 12:12:12.

Note:
The tokenization accepts the date range 0600-01-01 to 3337-11-27 excluding the cutover date range.
The de-tokenization accepts the date range 0600-01-01 to 3337-11-27 and date values from the Year 3338. The year 3338 is accepted due to our support for tokenized value from the cutover date range.

Consider a scenario where you are migrating the protected data from Protector 1 to Protector 2. The Protector 1 includes the Datetime tokenizer update to process the cutover dates of the Proleptic Gregorian Calendar as input. The Protector 2 does not include this update. In such a scenario, an “Invalid Date Format” error occurs in Protector 2, when you try to unprotect the protected data as it fails to accept the input year 3338. The following steps must be performed to mitigate this issue:

1. Unprotect the protected data from Protector 1.
2. Migrate the unprotected data to Protector 2.
3. Protect the data from Protector 2.

Time zone Normalization for Datetime Tokens
The Datetime tokenizer does not normalize the timestamp with respect to the timezone before protecting the data.

In a few Protectors, the timezone normalization is done by the APIs that are used by the Protectors to retrieve the timestamp. However, this behavior can also be configured.

There are differences in handling timestamps. Therefore, you cannot rely on Datetime tokens for migration or transfer to different systems or timezones.

So, before migrating the Datetime tokens, ensure that the timestamps are normalized for timezones so that unprotecting the token value returns the original expected value.

Datetime Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Datetime token.

Table: Supported input data types for Application protectors with Datetime token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Decimal token.

Table: Supported input data types for Big Data protectors with Decimal token

^*1 – If the input and output types of the API are BYTE [], the customer application should convert the input to a byte array. Then, call the API and convert the output from the byte array.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Decimal token.

Table: Supported input data types for Data Warehouse protectors with Decimal token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Decimal token.

Table: Supported input data types for Database protectors with Decimal token

For more information about Database protectors, refer to Database Protectors

11 - Unicode Gen2

The Unicode Gen2 token type can be used to tokenize multi-byte code point character strings. The input Unicode data after protection returns a token value in the same Unicode character format. The Unicode Gen2 token type gives you the liberty to customize how the protected token value is returned. It allows you to leverage existing built-in alphabets or create custom alphabets by defining code points. The Unicode Gen2 token type preserves code point length. If the length preservation option is selected, the protected token length will be equal to the input data length in code points.

For instance, the respective lengths for UTF-8 and UTF-16 in bytes, is described in the following table. The input is protected with the Unicode Gen2 tokenizer. The example alphabet used is Basic Latin combined with Japanese characters. The code point length is preserved.

Table: Lengths for UTF-8 and UTF-16

As the token type provides customizations through defining code points and creating custom token values, there are some considerations that must be taken before using such custom alphabets.

Note: For more information about the considerations, refer to Considerations while creating custom Unicode alphabets.

The performance benefits of this token type are higher compared to the other Unicode token types.

Table: Unicode Gen2 Tokenization Type properties

^*1 – The maximum input length to safely tokenize and detokenize the data is 4096 code points, which is irrespective of the byte representation.

^*2 - The SLT_1_3 tokenizer supports small alphabet size from 10-160 code points.

^*3 - The SLT_X_1 tokenizer supports large alphabet size from 161-100k code points.

The following table shows examples of the way in which a value will be tokenized with the Unicode Gen2 token.

Table: Examples of Tokenization for Unicode Gen2 Values

Considerations while creating custom Unicode alphabets

This section describes the important considerations to be aware of while working with Unicode. When creating a custom alphabet, a combination of existing alphabets, individual code points or ranges of code points can be used. The alphabet determines which code points are considered for tokenization. The code points not in the alphabet function as delimiters.

While this feature gives you the flexibility to generate token values in Unicode characters, the data element creation does not validate if the code point is defined or undefined. For example, consider that you create a data element that protects Greek and Coptic Unicode block. Though not recommended, a way you might consider to create the custom alphabet would be using the code point range option to include the whole Unicode block that ranges from U+0370 to U+03FF. As seen from the following image, this range includes both defined and undefined code points.

The code point, U+0378 in the defined Greek and Coptic code point range is an undefined code point. When any input data is protected, since the code point range includes both defined and undefined code points, it might result in a corrupted token value if the entire code point range is defined.

It is hence recommended that for Unicode code point ranges where both defined and undefined code points exist, you must create code points ranges excluding any undefined code points. So, in case of the Greek and Coptic characters, a recommended strategy to define alphabets would be to create multiple alphabet entries, such as a range to cover U+0371 to U+0377, another range to cover U+037A to U+037F, and so on, thus skipping undefined code points.

Note: Only the alphabet characters that are supported by the OS fonts are displayed on the Web UI.

Note: Ensure that code points in the alphabet are supported by the protectors using this alphabet.

Unicode Gen2 Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Unicode Gen2 token.

Note: The string as an input and byte as an output API is unsupported by Unicode Gen2 data elements for AP Java and AP Python.

Table: Supported input data types for Application protectors with Unicode Gen2 token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Unicode Gen2 token.

Table: Supported input data types for Big Data protectors with Unicode Gen2 token

^*1 – If the input and output types of the API are BYTE [], the customer application should convert the input to a byte array. Then, call the API and convert the output from the byte array.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The External IV is not supported in Data Warehouse Protector.

The following table shows the supported input data types for the Teradata protector with the Unicode Gen2 token.

Table: Supported input data types for Data Warehouse protectors with Unicode Gen2 token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Unicode Gen2 token.

Table: Supported input data types for Database protectors with Unicode Gen2 token

The maximum input lengths supported for the Oracle database protector are as described by the following points:

• Unicode Gen2 – Data type : VARCHAR2:

  1. If the tokenizer length preservation parameter is selected as Yes, then the maximum limit that can be safely tokenized and detokenized is 4000 bytes.
  2. If the tokenizer length preservation parameter is selected as No, then the maximum limit that can be safely tokenized and detokenized is 3000 bytes.

• Unicode Gen2 – Data type : NVARCHAR2:

  1. If the tokenizer length preservation parameter is selected as Yes, then the maximum limit that can be safely tokenized and detokenized is 4000 bytes.
  2. If the tokenizer length preservation parameter is selected as No, then the maximum limit that can be safely tokenized and detokenized is 3000 bytes.

• Unicode Gen2 - Tokenizers

  • The Unicode Gen2 data element supports SLT_1_3 and SLT_X_1 tokenizers.
  • The SLT_1_3 tokenizer supports small alphabet size from 10-160 code points.
  • The SLT_X_1 tokenizer supports large alphabet size from 161-100K code points.

  For more information about Database protectors, refer to Database Protectors

12 - Binary

The Binary token type can be used to tokenize binary data with Hex codes from 0x00 to 0xFF.

Table: Binary Tokenization Type properties

The following table shows examples of the way in which a value will be tokenized with the Binary token.

Table: Examples of Tokenization for Binary Values

Binary Tokenization Properties for different protectors

Application Protector

It is recommended to use Binary tokenization only with APIs that accept BYTE[] as input and provide BYTE[] as output. If Binary tokens are generated using APIs that accept BYTE[] as input and provide BYTE[] as output, and uniform encoding is maintained across protectors, then the tokens can be used across various protectors.

The following table shows supported input data types for Application protectors with the Binary token.

Table: Supported input data types for Application protectors with Binary token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Binary token.

Table: Supported input data types for Big Data protectors with Binary token

^*1 – If the input and output types of the API are BYTE [], the customer application should convert the input to a byte array. Then, call the API and convert the output from the byte array.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

^*3 – It is recommended to use Binary tokenization only with APIs that accept BYTE[] as input and provide BYTE[] as output. If Binary tokens are generated using APIs that accept input and provide output as BYTE[], these tokens can be used across various protectors. The Binary tokens is assumed to have uniform encoding across protectors.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Binary token.

Table: Supported input data types for Data Warehouse protectors with Binary token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Binary token.

Table: Supported input data types for Database protectors with Binary token

For more information about Database protectors, refer to Database Protectors

13 - Email

Email token type allows tokenization of an email address. Email tokens keep the domain name and all characters after the “@” sign in the clear. The local part, which is the part before the “@” sign, gets tokenized.

The table lists minimum and maximum length requirements for this token type, which should be applied for the local part, domain part and the entire e-mail.

Table: Email Tokenization Type Properties

^*1 – If the settings for short data tokenization is set to Yes, then the minimum tokenizable length for the local part of an email is one else it is three.

^*2 – If the settings for short data tokenization is set to Yes, then the maximum length for the domain part of an email is 253 else it is 252.

Email Token Format

An Email token format indicates the tokenization format for email. The email address consists of a local part and a domain, local-part@domain. The local part can be up to 64 characters and the domain name can be up to 254 characters, but the entire email address cannot be longer than 256 characters.

The following table explains email token format input requirements and tokenized output format:

Table: Output Values for Email Token Format

Note:
Comments are allowed both in local and domain part of the e-mail token, and comments will be tokenized only if they are in the local part. Here are the examples of comments usage for the e-mail - john.smith@example.com:

• john.smith(comment)@example.com
• “john(comment).smith@example.com”
• john(comment)n.smith@example.com
• john.smith@(comment)example.com
• john.smith@example.com(comment)

The following table shows examples of the way in which a value will be tokenized with the Email token.

Table: Examples of Tokenization for Email Token Formats

Email Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Email token.

Table: Supported input data types for Application protectors with Email token

^*1 – The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 – The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Email token.

Table: Supported input data types for Big Data protectors with Email token

^*1 – If the input and output types of the API are BYTE [], the customer application should convert the input to a byte array. Then, call the API and convert the output from the byte array.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

^*3 – If you are using the Char tokenization UDFs in Hive, then ensure that the data elements have length preservation selected. In Char tokenization UDFs, using data elements without length preservation selected, is not supported.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Email token.

Table: Supported input data types for Data Warehouse protectors with Email token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Email token.

Table: Supported input data types for Database protectors with Email token

For more information about Database protectors, refer to Database Protectors

14 - Printable

Deprecated

Starting from v10.0.x, the Printable token type is deprecated.
It is recommended to use the Unicode Gen2 token type instead of the Printable token type.

The Printable token type tokenizes ASCII printable characters from the ISO 8859-15 alphabet, which include letters, digits, punctuation marks, and miscellaneous symbols.

Table: Printable Tokenization Type properties

^*1 – The character column “CHAR” to protect is configured to remove trailing spaces before the tokenization. This means that the space character can be lost in translation for Printable tokens. To avoid this consider using Lower ASCII token instead of Printable for CHAR columns and input data having spaces.

^*2 – Printable tokenization is not supported on databases where the character set is UTF.

The following table shows examples of the way in which a value will be tokenized with the Printable token.

Table: Examples of Tokenization for Printable Values

Printable Tokenization Properties for different protectors

Application Protector

Printable tokenization is recommended for APIs that accept BYTE [] as input and provide BYTE [] as output. If uniform encoding is maintained across protectors, tokens generated by these APIs can be used across various protectors.

To ensure accurate tokenization results, user must use ISO 8859-15 character encoding when converting String data to Byte. This input should then be passed to Byte APIs.

Note: If Printable tokens are generated using APIs or UDFs that accept STRING or VARCHAR as input, then the protected values can only be unprotected using the protector with which it was protected. If you are unprotecting the protected data using any other protector, then you could get inconsistent results.

The following table shows supported input data types for Application protectors with the Printable token.

Table: Supported input data types for Application protectors with Printable token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protector only supports bytes converted from the string data type. If any other data type is directly converted to bytes and passed as input to the Application Protectors APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Printable token.

Table: Supported input data types for Big Data protectors with Printable token

^*1 – If the input and output types of the API are BYTE[], then the customer application should convert the input to and output from the byte array, before calling the API.

^*2 – Ensure that you use the Horizontal tab “\t” as the field or column delimiter when loading data that is tokenized using Printable tokens for Impala.

^*3 – Though the tokenization results for Impala may not be formatted and displayed accurately, they will be unprotected to the original values, using the respective protector.

^*4 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

^*5 – It is recommended to use Printable tokenization with APIs that accepts BYTE[] as input and provides BYTE[] as output. If uniform encoding is maintained across protectors, Printable tokens generated by such APIs can be used across various protectors. To ensure accurate formatting and display of tokenization results, clients should use ISO 8859-15 character encoding. Before passing input to Byte APIs, clients must convert String data type to Byte and apply ISO 8859-15 character encoding.

^*6 – Printable tokens are generated using APIs or UDFs. These APIs or UDFs accept STRING or VARCHAR as input. Then, the protected values can only be unprotected using the protector with which it was protected. If you are unprotecting the protected data using any other protector, then you could get inconsistent results.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

Printable tokens are generated using APIs or UDFs. These APIs or UDFs accept STRING or VARCHAR as input. Then, the protected values can only be unprotected using the protector with which it was protected. If you are unprotecting the protected data using any other protector, then you could get inconsistent results.

Important: Tokenizing XML or JSON data with Printable tokenization will not return valid XML or JSON format output.

JSON and XML UDFs are supported for the Teradata Data Warehouse Protector.

The following table shows the supported input data types for the Teradata protector with the Printable token.

Table: Supported input data types for Data Warehouse protectors with Printable token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Printable token.

Table: Supported input data types for Database protectors with Printable token

For more information about Database protectors, refer to Database Protectors

15 - Date (YYYY-MM-DD, DD/MM/YYYY, MM.DD.YYYY)

Deprecated

Starting from v10.0.x, the Date YYYY-MM-DD, Date DD/MM/YYYY, and Date MM.DD.YYYY tokenization types are deprecated.
It is recommended to use the Datetime (YYYY-MM-DD HH:MM:SS MMM) token type instead of the Date YYYY-MM-DD, Date DD/MM/YYYY, and Date MM.DD.YYYY token types.

The Date token type supports date formats corresponding to the big endian, little endian, and middle endian forms. It protects dates in one of the following formats:

• YYYY<delim>MM<delim>DD
• DD<delim>MM<delim>YYYY
• MM<delim>DD<delim>YYYY

Where <delim> is one of the allowed separators: dot “.”, slash “/”, or dash “-”.

Table: Date Tokenization Type properties

The following table shows examples of the way in which a value will be tokenized with the Date token.

Table: Examples for Tokenization of Date

Date Tokenization for Cutover Dates of the Proleptic Gregorian Calendar

The data systems, such as, Oracle or Java-based systems, do not accept the cutover dates of the Proleptic Gregorian Calendar. The cutover dates of the Proleptic Gregorian Calendar fall in the interval 1582-10-05 to 1582-10-14. These dates are converted to 1582-10-15. When using Oracle, conversion occurs by adding ten days to the source date. Due to this conversion, data loss occurs as the system is not capable to return the actual date value after the de-tokenization.

The following points are applicable for the tokenization and de-tokenization of the cutover dates of the Proleptic Gregorian Calendar:

• The tokenization of the date values in the cutover date range of the Proleptic Gregorian Calendar results in an ‘Invalid Input’ error.
• During tokenization, an internal validation is performed to check whether the value is tokenized to the cutover date. If it is a cutover date, then the Year part (1582) of the tokenized value is converted to 3338 and then returned. During de-tokenization, an internal check is performed to validate whether the Year is 3338. If the Year is 3338, then it is internally converted to 1582.

Note:
The tokenization accepts the date range 0600-01-01 to 3337-11-27 excluding the cutover date range.
The de-tokenization accepts the date ranges 0600-01-01 to 3337-11-27 and 3338-10-05 to 3338-10-14.

Consider a scenario where you are migrating the protected data from Protector 1 to Protector 2. The Protector 1 includes the Date tokenizer update to process the cutover dates of the Proleptic Gregorian Calendar as input. The Protector 2 does not include this update. In such a scenario, an “Invalid Date Format” error occurs in Protector 2, when you try to unprotect the protected data as it fails to accept the input year 3338. The following steps must be performed to mitigate this issue:

1. Unprotect the protected data from Protector 1.
2. Migrate the unprotected data to Protector 2.
3. Protect the data from Protector 2.

Date Tokenization Properties for different protectors

Application Protector

The following table shows supported input data types for Application protectors with the Date token.

Table: Supported input data types for Application protectors with Date token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The following table shows supported input data types for Big Data protectors with the Date token.

Table: Supported input data types for Big Data protectors with Date token

^*1 – If the input and output types of the API are BYTE [], the customer application should convert the input to a byte array. Then, call the API and convert the output from the byte array.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

^*3 – In the Big Data Protector, the date format supported for Hive, Impala, Spark SQL, and Trino is YYYY-MM-DD only.

Date input values are not fully validated to ensure they represent valid dates. For instance, entering a day value greater than 31 or a month value greater than 12 will result in an error. However, the date 2011-02-30 does not cause an error but is converted to 2011-03-02, which is not the intended date.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The following table shows the supported input data types for the Teradata protector with the Date token.

Table: Supported input data types for Data Warehouse protectors with Date token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Date token.

Table: Supported input data types for Database protectors with Date token

For more information about Database protectors, refer to Database Protectors

16 - Unicode

Deprecated

Starting from v10.0.x, the Unicode token type is deprecated.
It is recommended to use the Unicode Gen2 token type instead of the Unicode token type.

The Unicode token type can be used to tokenize multi-byte character strings. The input is treated as a byte stream, hence there are no delimiters. There are also no character conversions or code point validation done on the input. The token value will be alpha-numeric.

The encoding and unicode character set of the input data will affect the protected data length. For instance, the respective lengths for UTF-8 and UTF-16, in bytes, is described in the following table.

Table: Lengths for UTF-8 and UTF-16

Table: Unicode Tokenization Type properties

^*1 - If the input and output types of the API are BYTE[], then the customer application should convert the input to and output from the byte array, before calling the API.

^*2 - The maximum input length to safely tokenize and detokenize the data is 4096 bytes, which is irrespective of the byte representation.

The following table shows examples of the way in which a value will be tokenized with the Unicode token.

Table: Examples of Tokenization for Unicode Values

Unicode Tokenization Properties for different protectors

Unicode tokenization is supported only by Application Protectors, Big Data Protector and Data Warehouse Protector.

Application Protector

The following table shows supported input data types for Application protectors with the Unicode token.

Table: Supported input data types for Application protectors with Unicode token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The minimum and maximum lengths supported for the Big Data Protector are as described by the following points:

• MapReduce: The maximum limit that can be safely tokenized and detokenized back is 4096 bytes. The user controls the encoding, as required.
• Spark: The maximum limit that can be safely tokenized and detokenized back is 4096 bytes. The user controls the encoding, as required.
• Hive: The ptyProtectUnicode and ptyUnprotectUnicode UDFs convert data to UTF-16LE encoding internally. These encoding has a minimum requirement of four bytes of data in UTF-16LE encoding. Additionally, it has a maximum limit of 4096 bytes in UTF-16LE encoding for safely tokenizing and detokenizing the data. The pty_ProtectStr and pty_UnprotectStr UDFs convert data to UTF-8 encoding internally. This encoding has a minimum requirement of three bytes for data in UTF-8 encoding. Additionally, it has a maximum limit of 4096 bytes for safely tokenizing and detokenizing the data.
• Impala: The pty_UnicodeStringIns and pty_UnicodeStringSel UDFs convert data to UTF-16LE encoding internally. These encoding has a minimum requirement of four bytes of data in UTF-16LE encoding. Additionally, it has a maximum limit of 4096 bytes in UTF-16LE encoding for safely tokenizing and detokenizing the data. The pty_StringIns and pty_StringSel UDFs convert data to UTF-8 encoding internally. This encoding has a minimum requirement of three bytes for data in UTF-8 encoding. Additionally, it has a maximum limit of 4096 bytes for safely tokenizing and detokenizing the data.

The following table shows supported input data types for Big Data protectors with the Unicode token.

Table: Supported input data types for Big Data protectors with Unicode token

^*1 – If the input and output types of the API are BYTE [], the customer application should convert the input to a byte array. Then, call the API and convert the output from the byte array.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

If short data tokenization is not enabled, the minimum length for Unicode tokenization type is 3 bytes. The input value in Teradata Unicode UDF is encoded using UTF16 due to which internally the data length is multiplied by 2 bytes. Hence, the Teradata Unicode UDF is able to tokenize a data length that is less than the minimum supported length of 3 bytes.

The External IV is not supported in Data Warehouse Protector.

The following table shows the supported input data types for the Teradata protector with the Unicode token.

Table: Supported input data types for Data Warehouse protectors with Unicode token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Unicode token.

Table: Supported input data types for Database protectors with Unicode token

For more information about Database protectors, refer to Database Protectors

17 - Unicode Base64

Deprecated

Starting from v10.0.x, the Unicode Base64 token type is deprecated.
It is recommended to use the Unicode Gen2 token type instead of the Unicode Base64 token type.

The Unicode Base64 token type can be used to tokenize multi-byte character strings. The input is treated as a byte stream, hence there are no delimiters. Any character conversions or code point validation are not performed on the input. This token element uses Base64 encoding. This encoding results in better performance compared to Unicode token element. It includes three additional characters, namely +, /, and = along with alpha numeric characters. The token value generated includes alpha numeric, +, /, and =.

The encoding and unicode character set of the input data will affect the protected data length. For instance, the respective lengths for UTF-8 and UTF-16, in bytes, is described in the following table.

Table: Lengths for UTF-8 and UTF-16

Table: Unicode Base64 Tokenization Type properties

^*1 - The maximum input length to safely tokenize and detokenize the data is 4096 bytes, which is irrespective of the byte representation.

The following table shows examples of the way in which a value will be tokenized with the Unicode Base64 token.

Table: Examples of Tokenization for Unicode Base64 Values

Unicode Base64 Tokenization Properties for different protectors

The Unicode Base64 tokenization is supported only by Application Protectors, Big Data Protector, Data Warehouse Protector, and Data Security Gateway.

Application Protector

The following table shows supported input data types for Application protectors with the Unicode Base64 token.

Table: Supported input data types for Application protectors with Unicode Base64 token

^*1 - The API accepts and returns data in BYTE[] format. The customer application needs to convert the input into byte arrays before calling the API, and similarly, convert the output from byte arrays after receiving the response from the API.

^*2 - The Protegrity Application Protectors only support bytes converted from the string data type. If int, short, or long format data is directly converted to bytes and passed as input to the Application Protector APIs that support byte as input and provide byte as output, then data corruption might occur.

For more information about Application protectors, refer to Application Protector.

Big Data Protector

Protegrity supports MapReduce, Hive, Pig, HBase, Spark, and Impala, which utilizes Hadoop Distributed File System (HDFS) or Ozone as the data storage layer. The data is protected from internal and external threats, and users and business processes can continue to utilize the secured data. Protegrity protects data inside the files using tokenization and strong encryption protection methods.

The minimum and maximum lengths supported for the Big Data Protector are as described by the following points:

• MapReduce: The maximum limit that can be safely tokenized and detokenized back is 4096 bytes. The user controls the encoding, as required.
• Spark: The maximum limit that can be safely tokenized and detokenized back is 4096 bytes. The user controls the encoding, as required.
• Hive: The ptyProtectUnicode and ptyUnprotectUnicode UDFs convert data to UTF-16LE encoding internally. These encoding has a minimum requirement of four bytes of data in UTF-16LE encoding. Additionally, it has a maximum limit of 4096 bytes in UTF-16LE encoding for safely tokenizing and detokenizing the data.
  The pty_ProtectStr and pty_UnprotectStr UDFs convert data to UTF-8 encoding internally. This encoding has a minimum requirement of three bytes for data in UTF-8 encoding. Additionally, it has a maximum limit of 4096 bytes for safely tokenizing and detokenizing the data.
• Impala: The pty_UnicodeStringIns and pty_UnicodeStringSel UDFs convert data to UTF-16LE encoding internally. These encoding has a minimum requirement of four bytes of data in UTF-16LE encoding. Additionally, it has a maximum limit of 4096 bytes in UTF-16LE encoding for safely tokenizing and detokenizing the data.
  The pty_StringIns and pty_StringSel UDFs convert data to UTF-8 encoding internally. This encoding has a minimum requirement of three bytes for data in UTF-8 encoding. Additionally, it has a maximum limit of 4096 bytes for safely tokenizing and detokenizing the data.

The following table shows supported input data types for Big Data protectors with the Unicode Base64 token.

Table: Supported input data types for Big Data protectors with Unicode Base64 token

^*1 – If the input and output types of the API are BYTE [], the customer application should convert the input to a byte array. Then, call the API and convert the output from the byte array.

^*2 – The Protegrity MapReduce protector, HBase coprocessor, and Spark protector only support bytes converted from the string data type. Data types that are not bytes converted from the string data type might cause data corruption to occur when:

• Any other data type is directly converted to bytes and passed as input to the MapReduce or Spark API that supports byte as input and provides byte as output.
• Any other data type is directly converted to bytes and inserted in an HBase table. Where the HBase table is configured with the Protegrity HBase coprocessor.

For more information about Big Data protectors, refer to Big Data Protector.

Data Warehouse Protector

The Protegrity Data Warehouse Protector is an advanced security solution designed to protect sensitive data at the column level. This enables you to secure your data, while still permitting access to authorized users. Additionally, the Data Warehouse Protector integrates seamlessly with existing database systems using the User-Defined Functions for an enhanced security. Protegrity protects data inside the data warehouses using various tokenization and encryption methods.

The External IV is not supported in Data Warehouse Protector.

The following table shows the supported input data types for the Teradata protector with the Unicode Base64 token.

Table: Supported input data types for Data Warehouse protectors with Unicode Base64 token

For more information about Data Warehouse protectors, refer to Data Warehouse Protector.

Database Protectors

The following table shows supported input data types for Database protectors with the Unicode Base64 token.

Table: Supported input data types for Database protectors with Unicode Base64 token

The maximum input lengths supported for the Oracle database protector are as described by the following points:

• Base 64 – Data type : VARCHAR2: The maximum limit that can be safely tokenized and detokenized back is 3000 bytes.

For more information about Database protectors, refer to Database Protectors
